Overview
The ANENG DM850 is a professional-grade, pocket-sized digital multimeter designed for precision, safety, and durability. Whether you are a technician in a lab, a DIY enthusiast, or a home hobbyist, this versatile 1999-count instrument delivers reliable readings for a wide range of electrical diagnostics.
Key Features
-
High-Precision 1999-Count Display:
Equipped with a large 3½ digit, 0.5" LCD for crystal-clear data visualization, even in low-light environments.
-
Professional Accuracy & Stability:
Features high sensitivity and a fast refresh rate, ensuring diagnostic confidence you can trust for sensitive electronic components.
-
Smart Safety Protection:

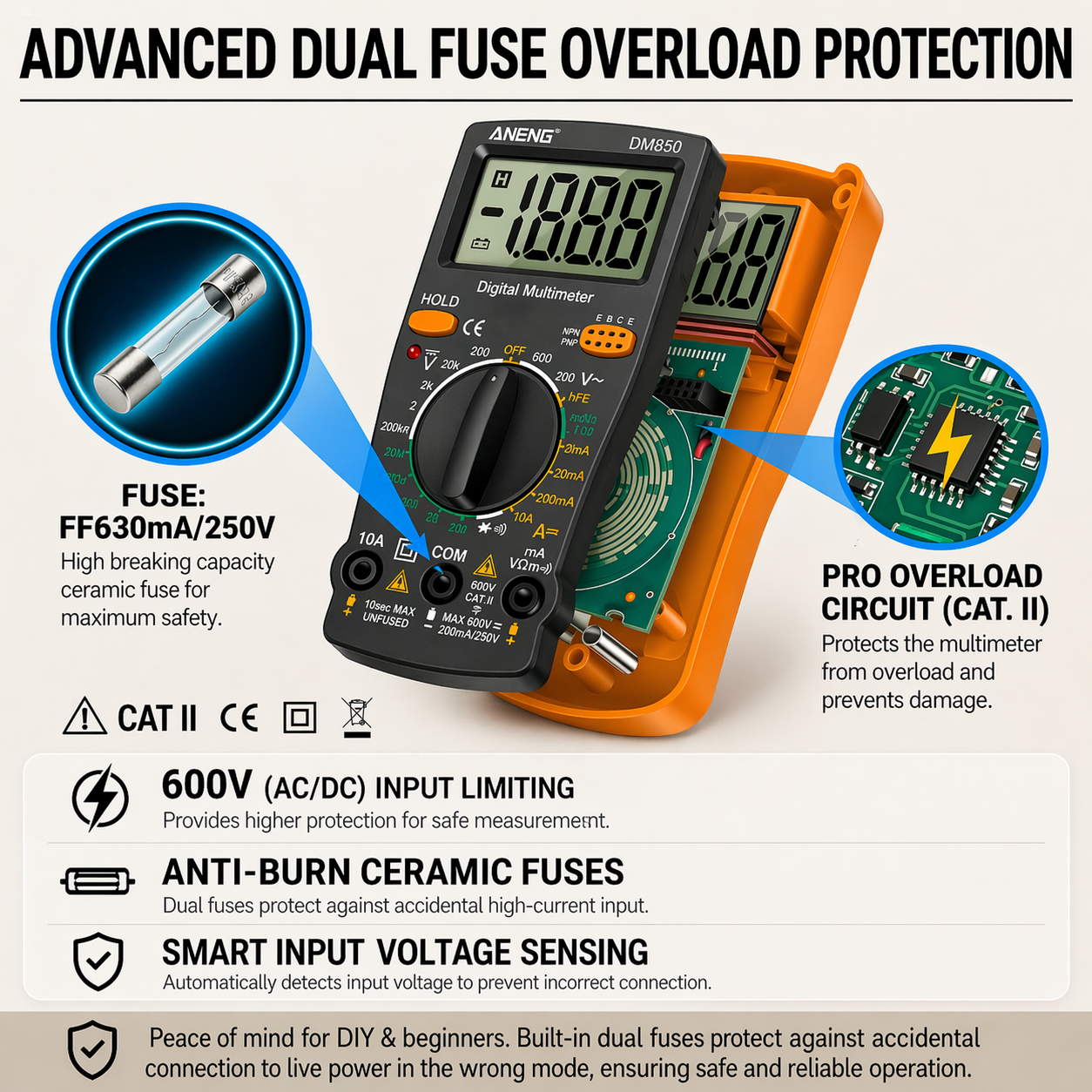

Built-in full-range overload protection and a secure housing design to prevent accidental damage during measurement.
-
Versatile Diagnostic Suite:

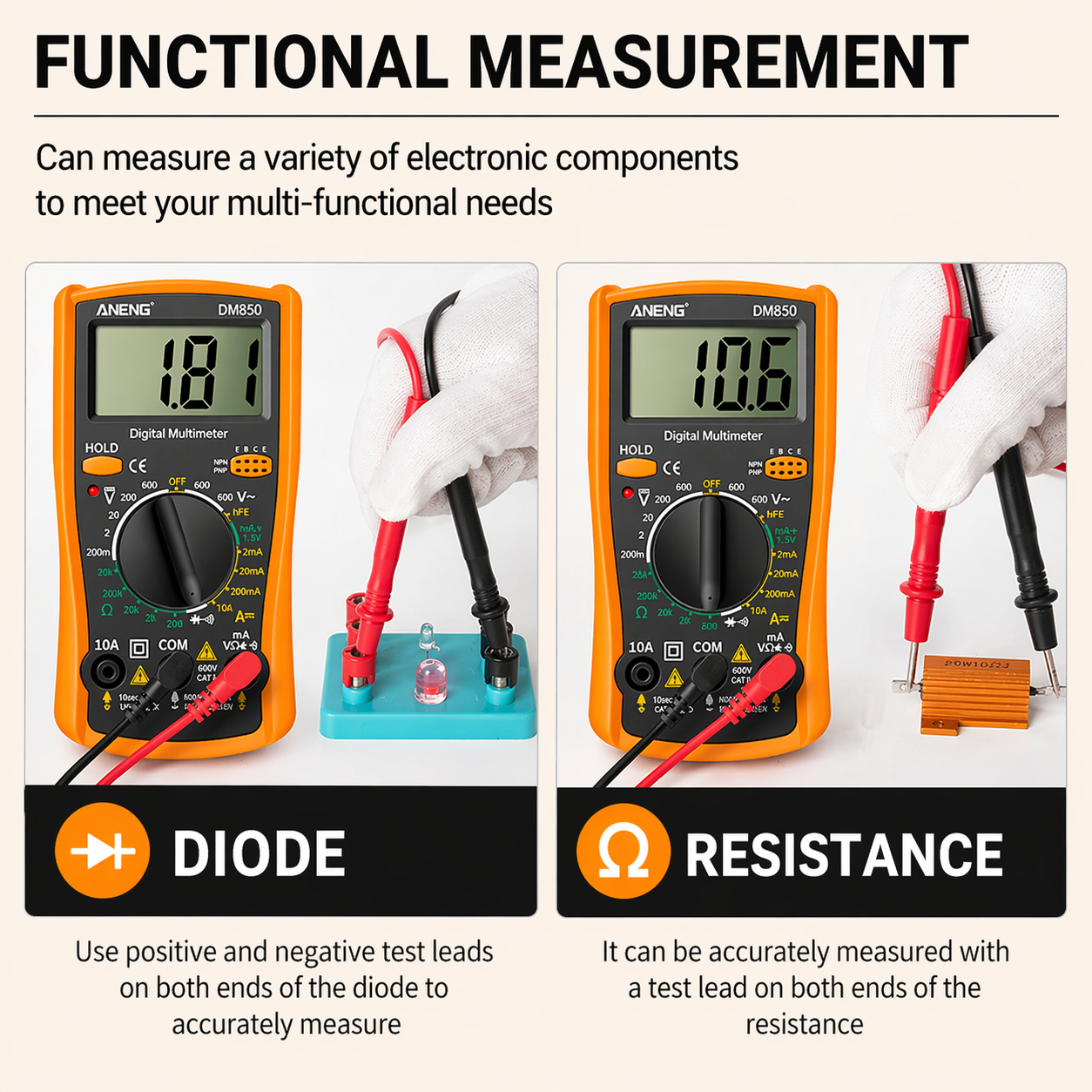

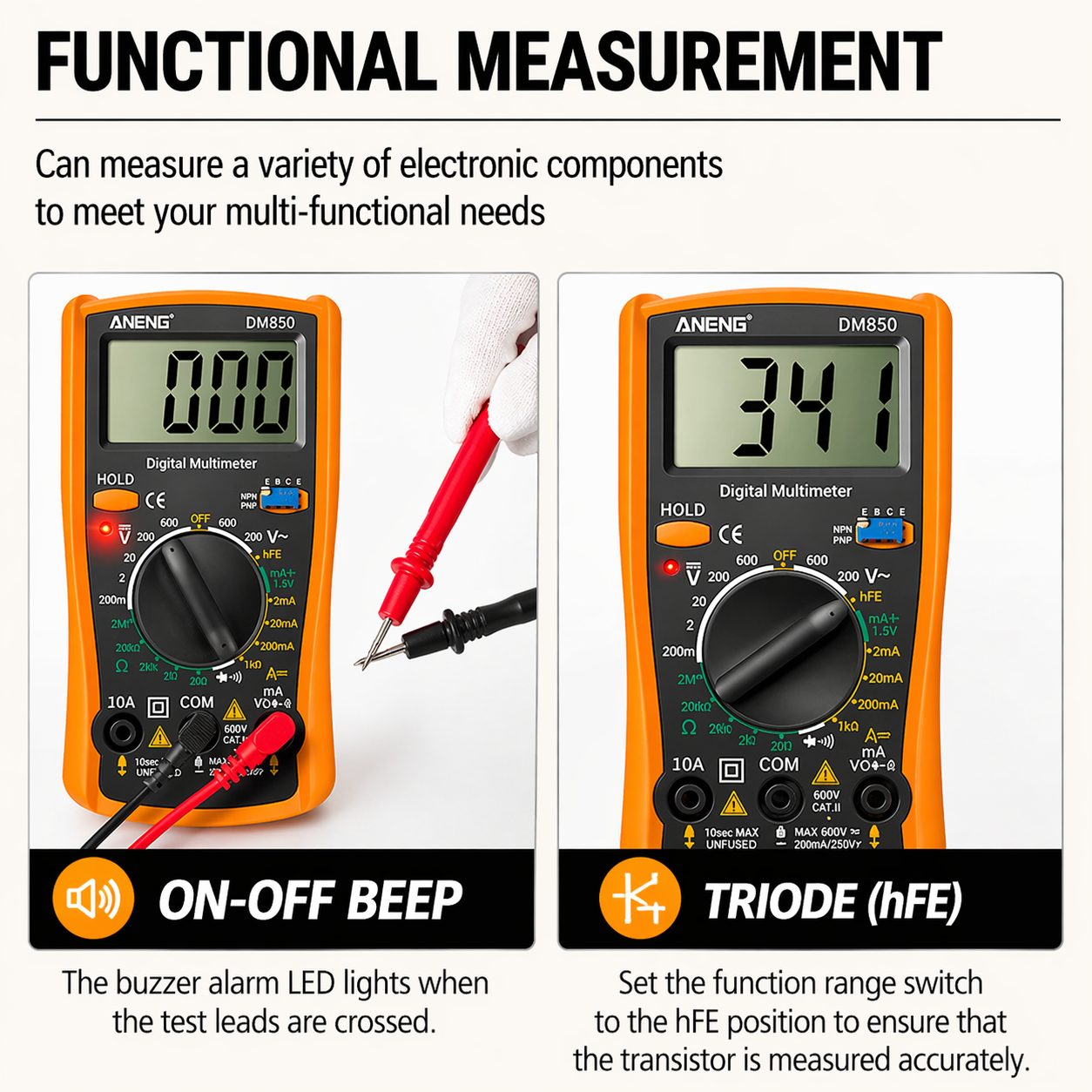

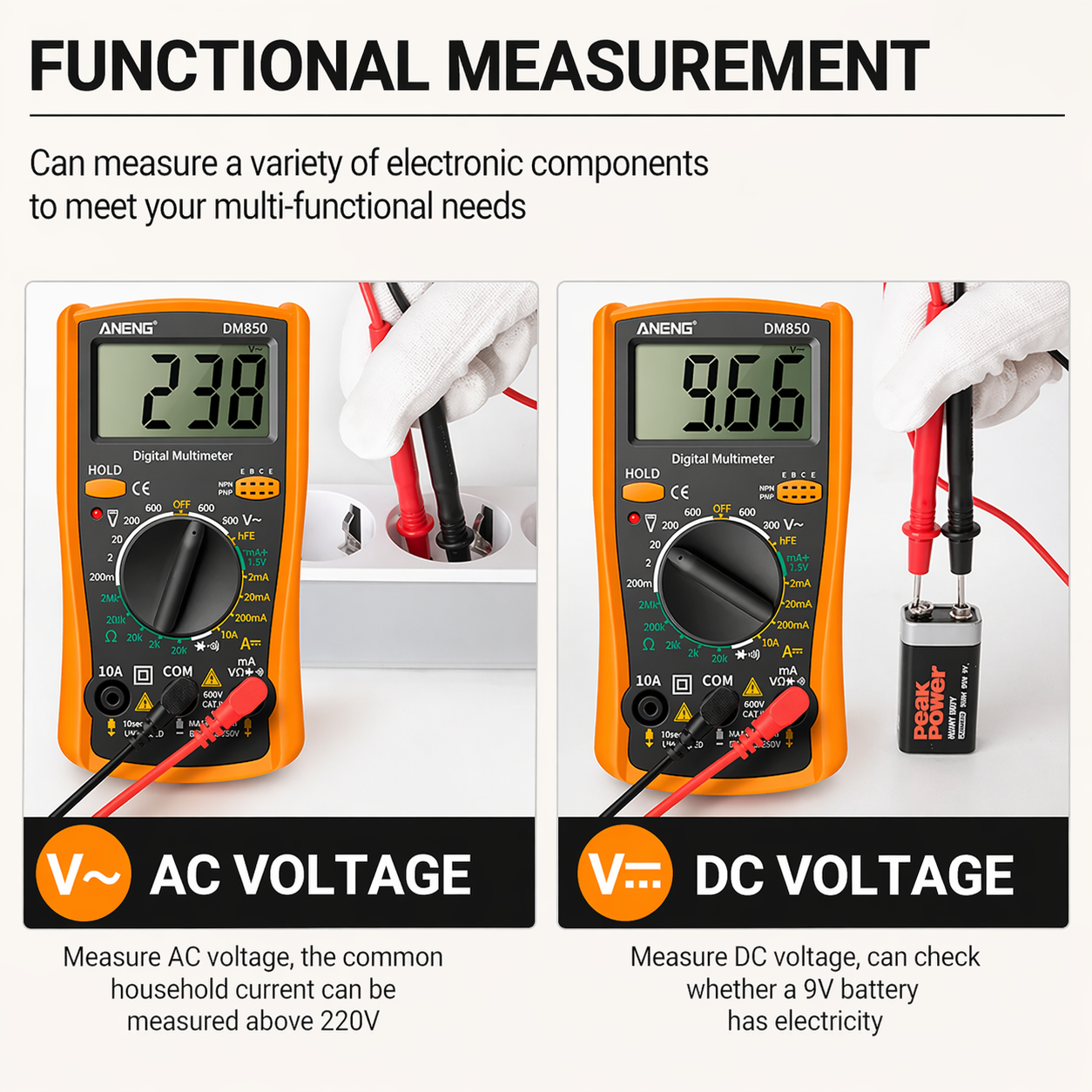

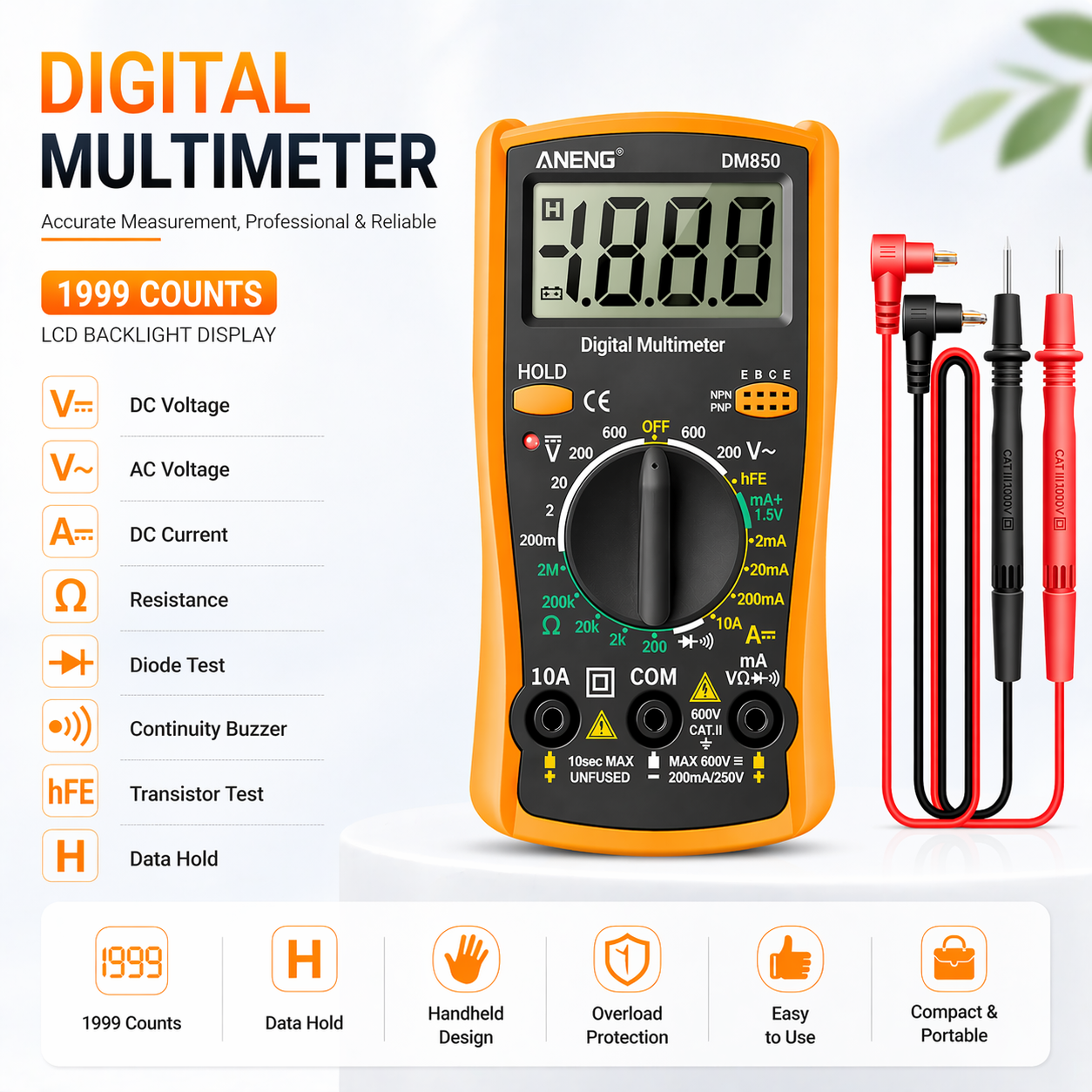

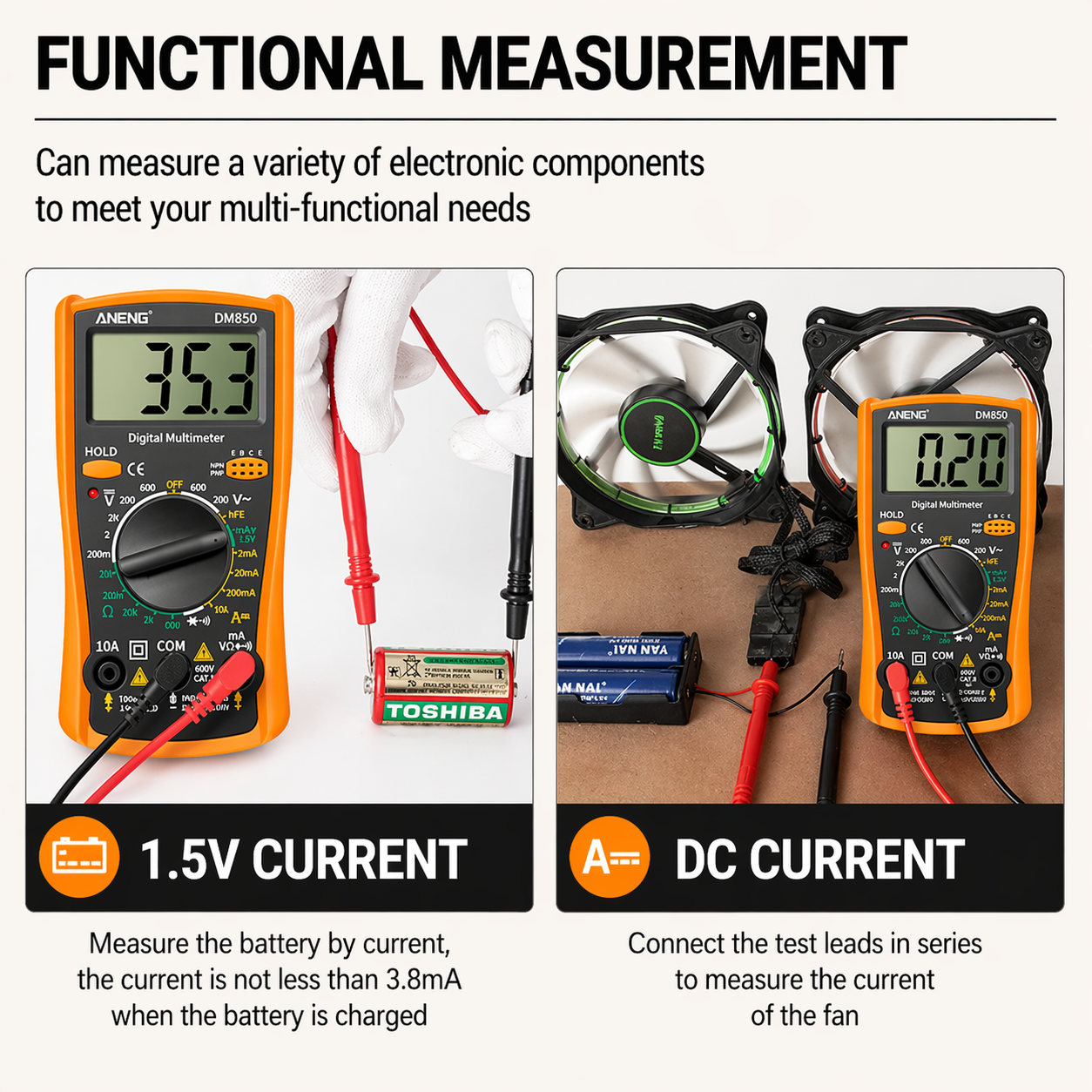

Accurately measures AC/DC Voltage, DC Current, and Resistance, alongside specialized functions for Diode testing, Audible Continuity, and Temperature.
-

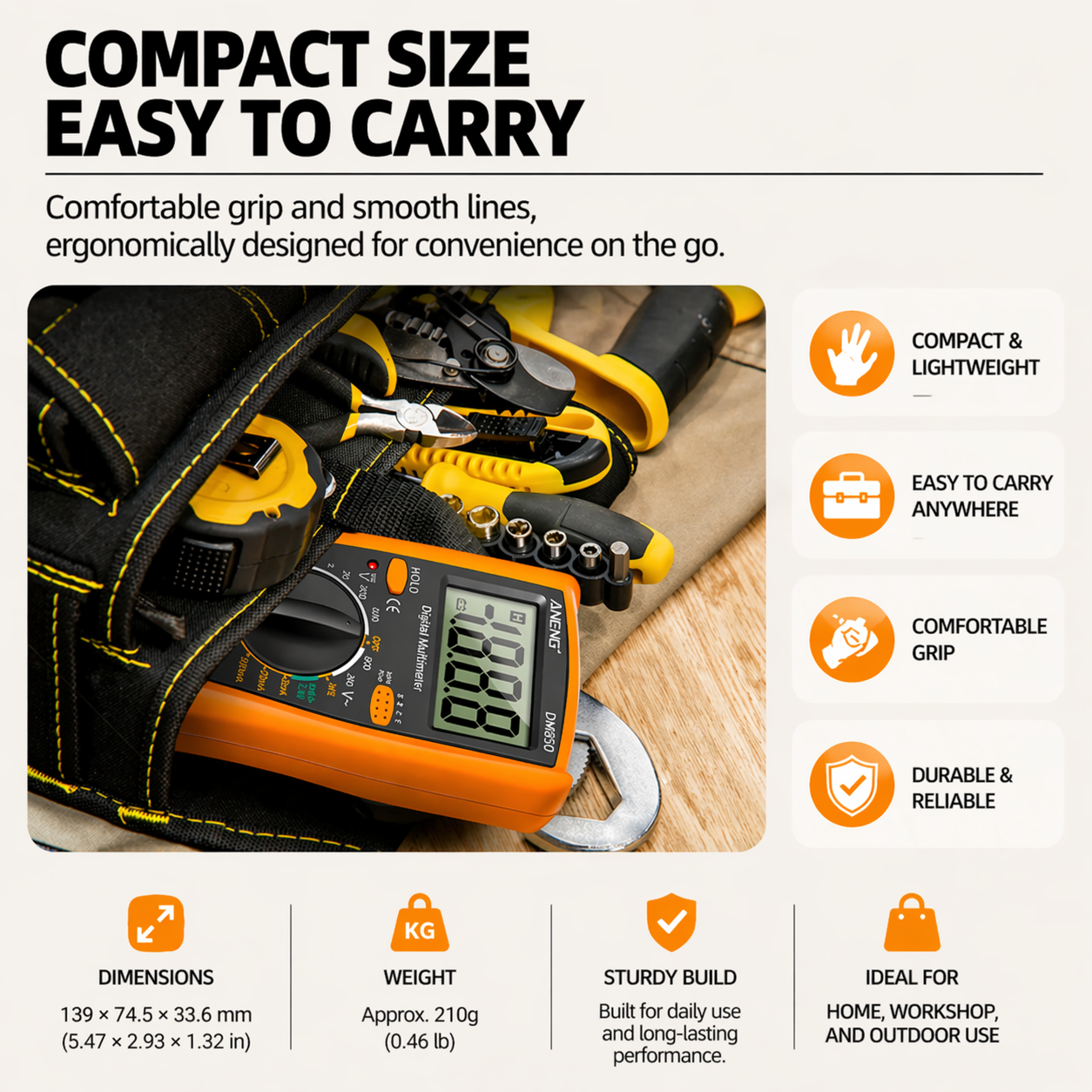

Ergonomic & Portable:
Compact scientific design with a "Data Hold" (HOLD) function, allowing you to lock measurements on the screen for easy recording.

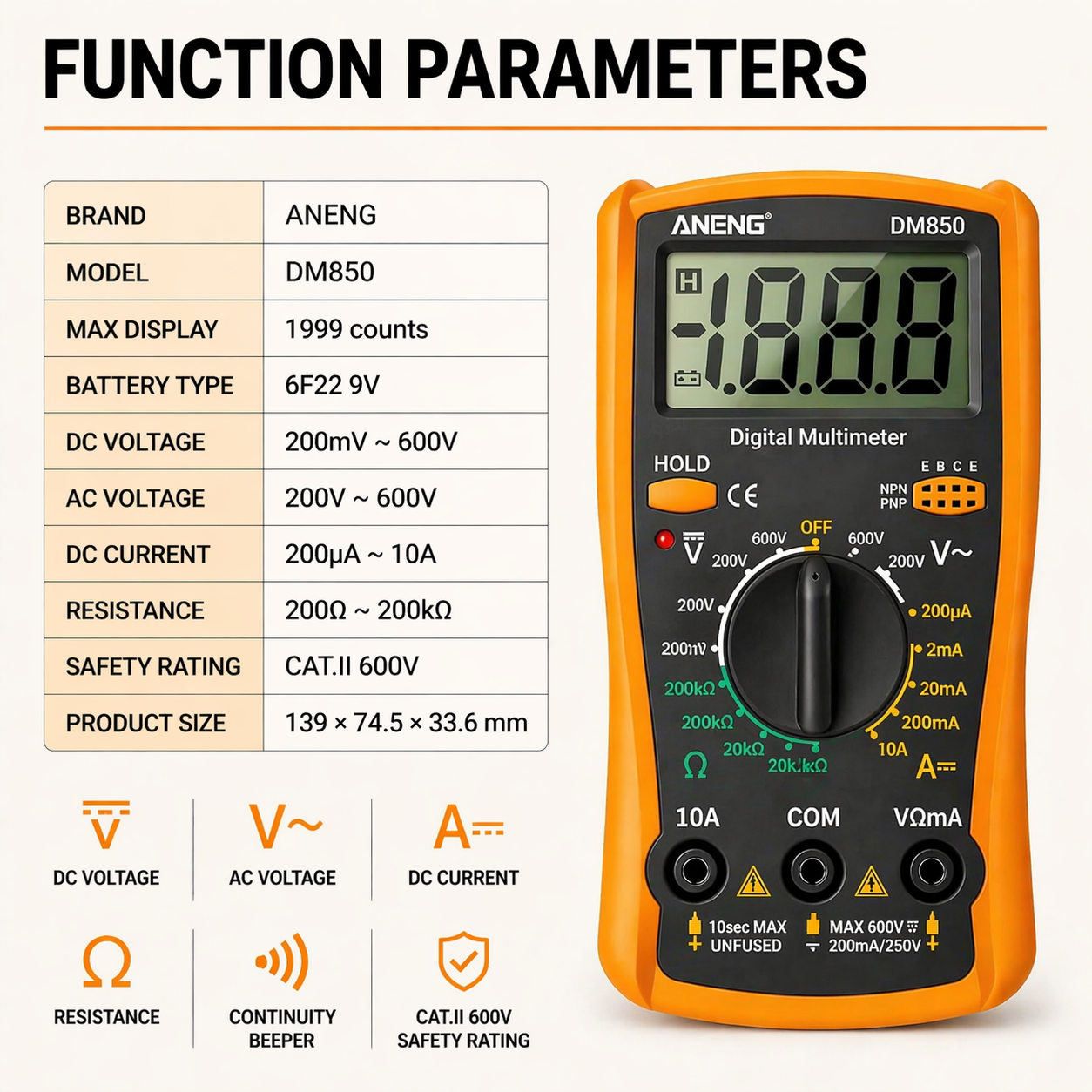

Technical & Physical Specifications
-
Display: 3½ Digit LCD, 1999 Counts
-
Power Source: Battery Powered
-

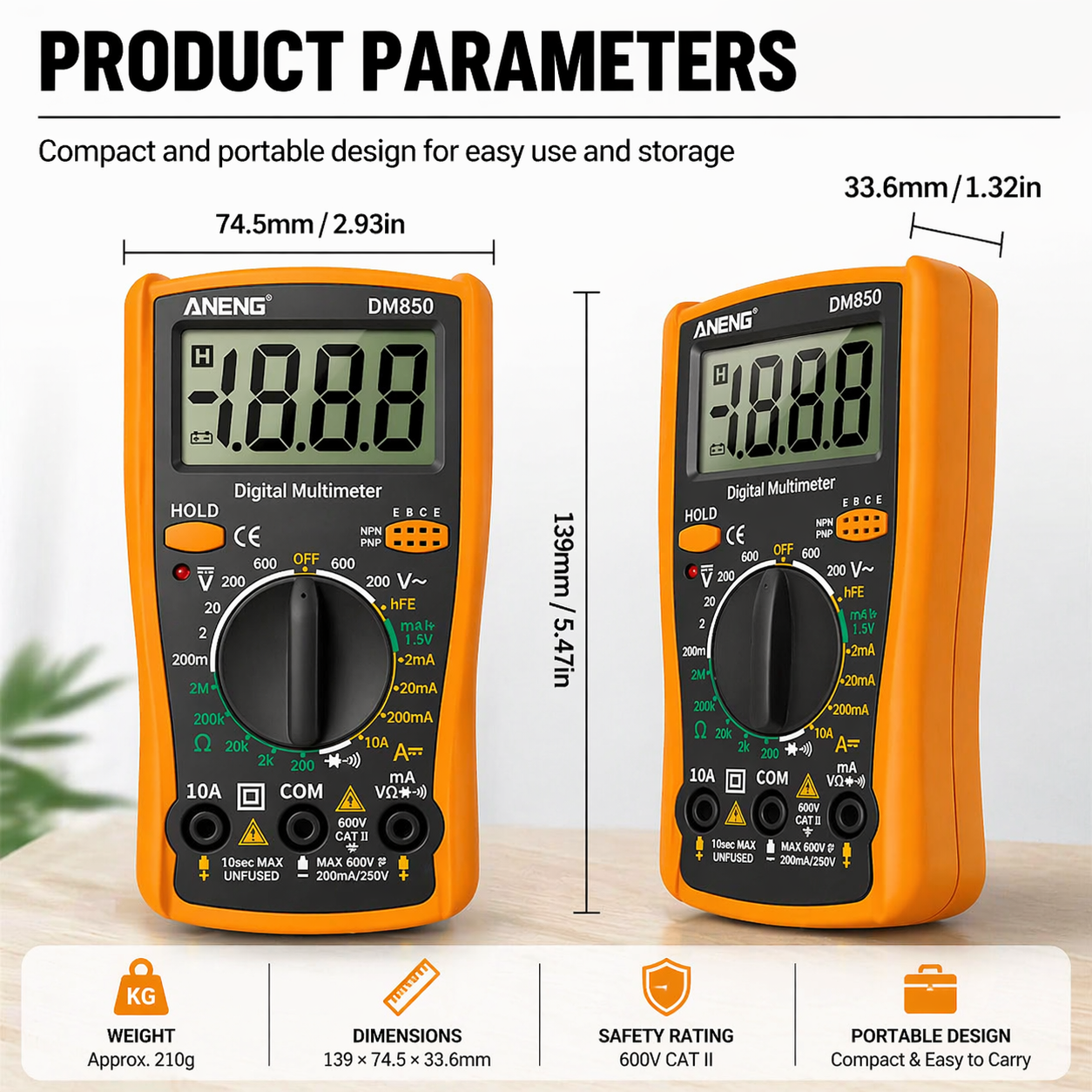

Dimensions:Approx. 139 x 74.5 x 33.6 mm.
-
AC Frequency Range: 45Hz ~ 450Hz
-
Overload Protection: 600V DC/AC (all ranges)
Measurement Ranges & Accuracy
| Function | Range | Accuracy |
| DC Voltage | 200mV | ±(2% of rdg + 3D) |
| 2000mV / 20V / 200V | ±(2% of rdg + 5D) | |
| 600V | ±(2.5% of rdg + 5D) | |
| AC Voltage | 200V / 600V | ±(2% of rdg + 10D) |
| DC Current | 200uA / 2mA / 20mA | ±(2% of rdg + 2D) |
| 200mA | ±(2.5% of rdg + 2D) | |
| 10A | ±(2.5% of rdg + 10D) | |
| Resistance | 200Ω | ±(2.5% of rdg + 10D) |
| 2kΩ / 20kΩ / 200kΩ / 2MΩ | ±(2.5% of rdg + 4D) | |
| Continuity | Audible Buzzer (< 30Ω ) | Yes |
| Diode Test | Displays forward voltage drop (mV) | Yes |

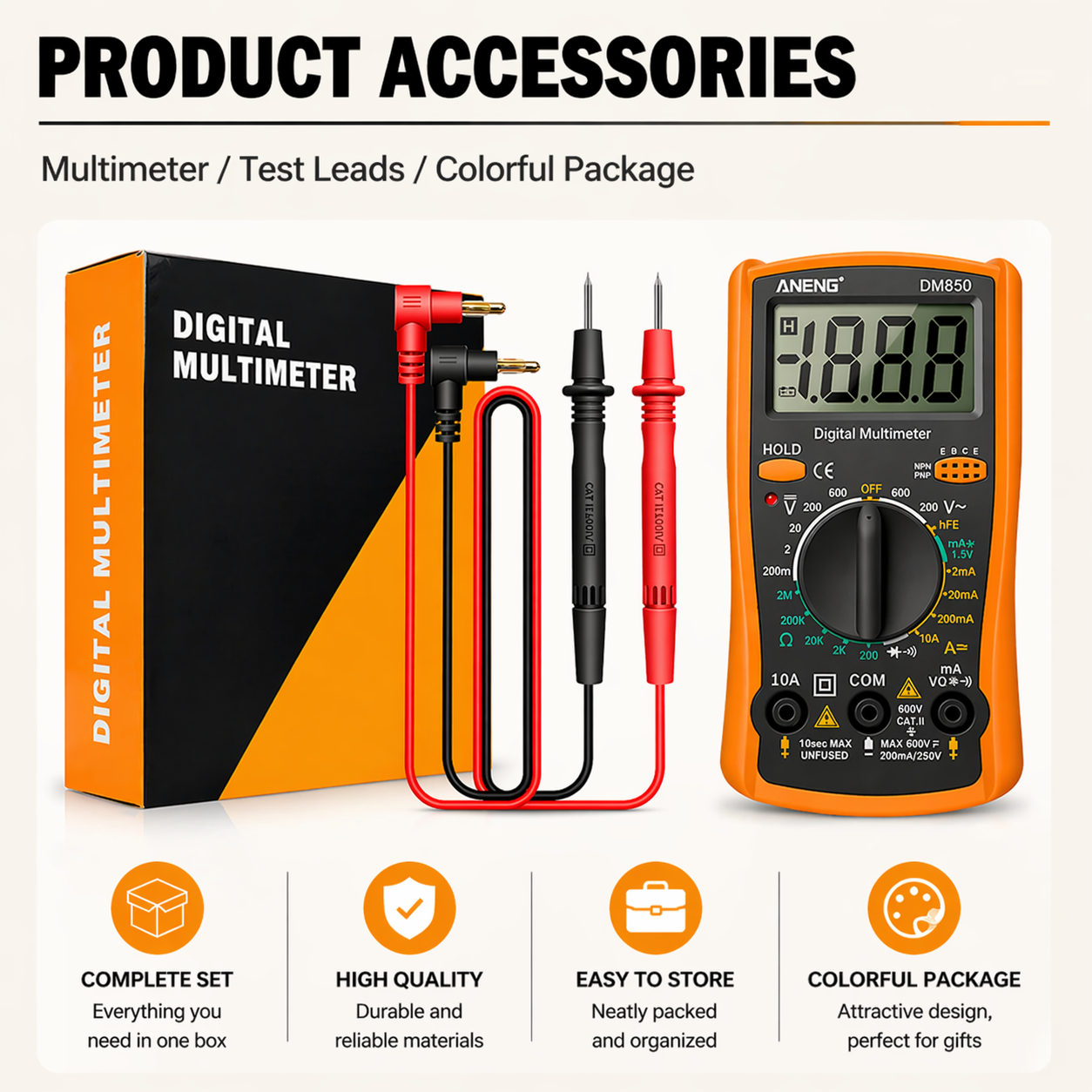

Package Includes
-
1 x Digital Multimeter
-
1 x Pair of Test Leads
-
1 x User Manual
-
1 x Protective Packaging Box
-

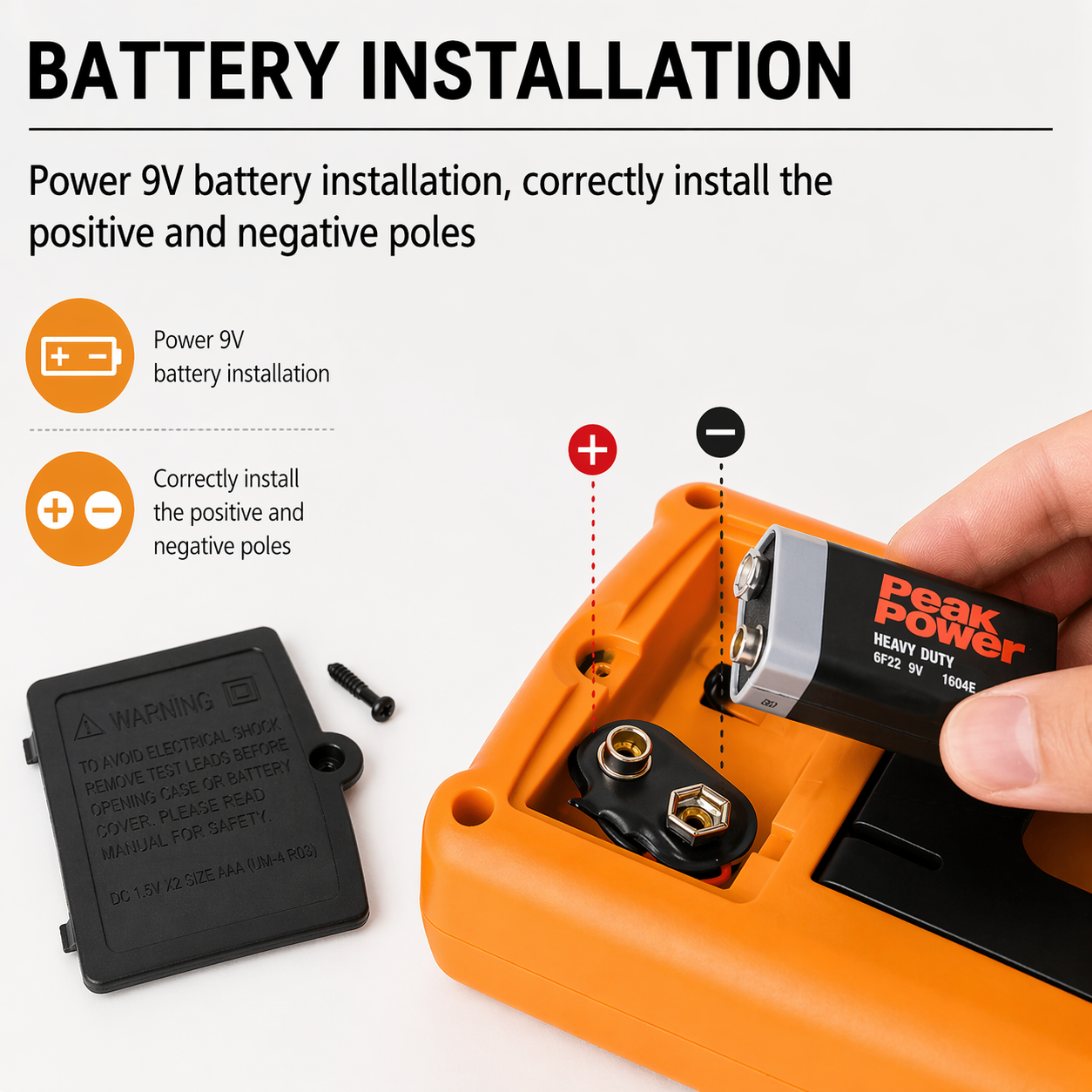

(Note: 9V battery not included for shipping safety)
Why Choose the DM850?
The DM850 is the perfect companion for Australian households and workshops. Its compact size makes it highly portable, while the upgraded accuracy and full-range protection meet the rigorous testing needs of modern electrical repairs. It’s a dependable tool that balances professional performance with an easy-to-use interface.
