Smart Clamp Meter 4000 Counts 24mm Jaw Digital Multimeter Tester
Smart Clamp Meter 4000 Counts 24mm Jaw Digital Multimeter Tester
Couldn't load pickup availability

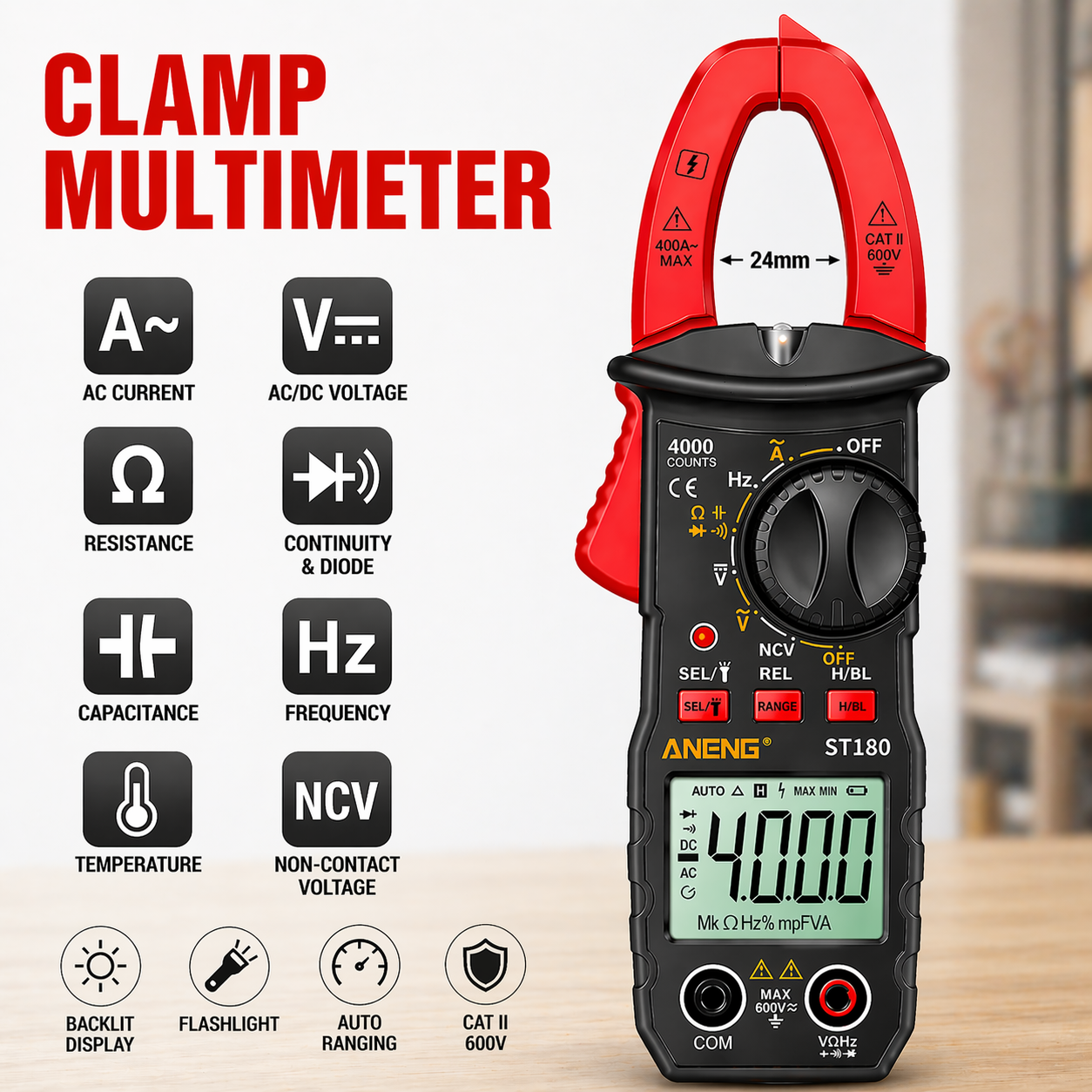

Professional Mini Digital Clamp Meter - Compact, Precise & Multi-Functional
The ANENG ST180 is a high-performance, mini-sized auto-ranging digital multimeter designed with a focus on safety, portability, and high accuracy. Built to IEC61010 standards, this handheld tool is the ultimate diagnostic companion for professional electricians, automotive technicians, and DIY enthusiasts.

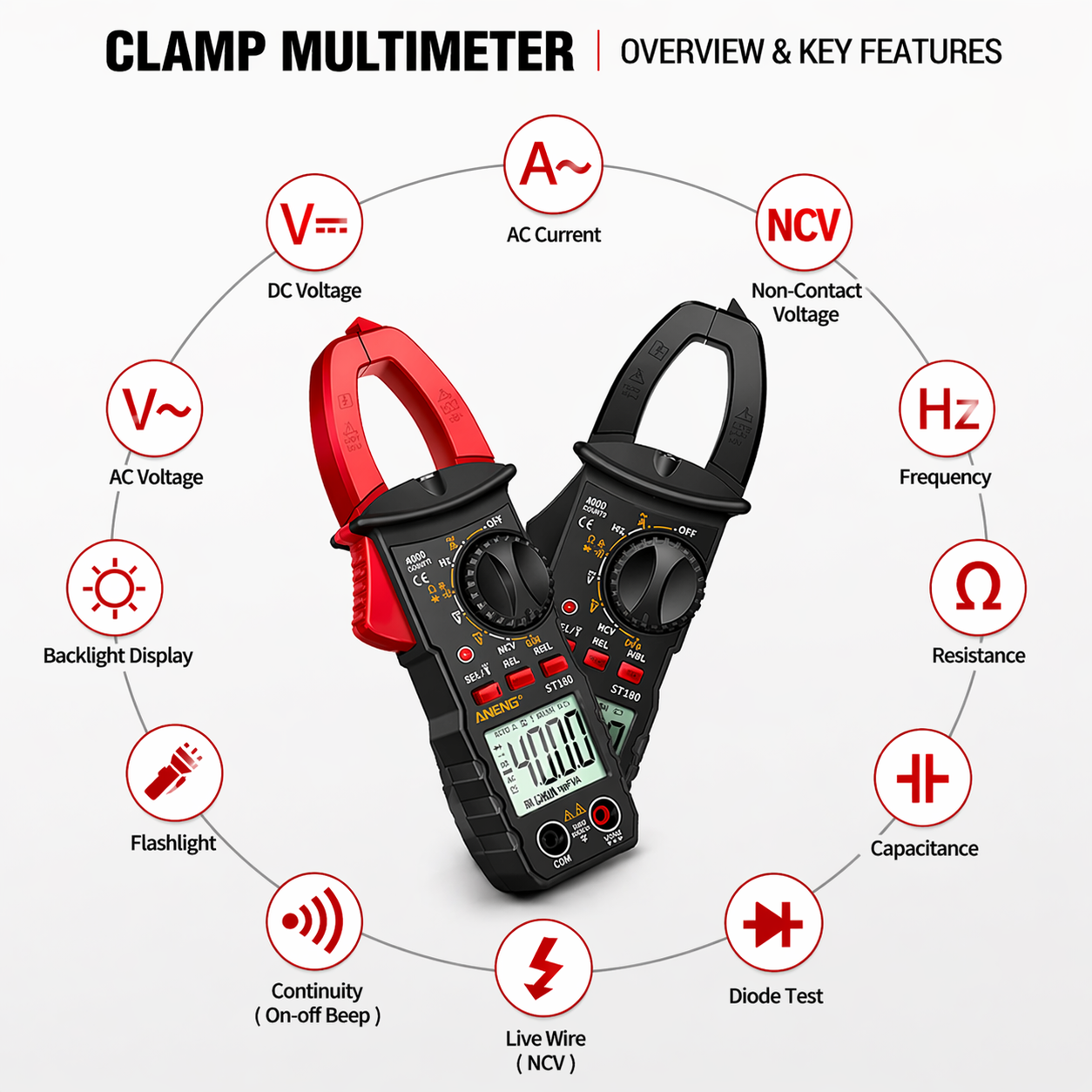

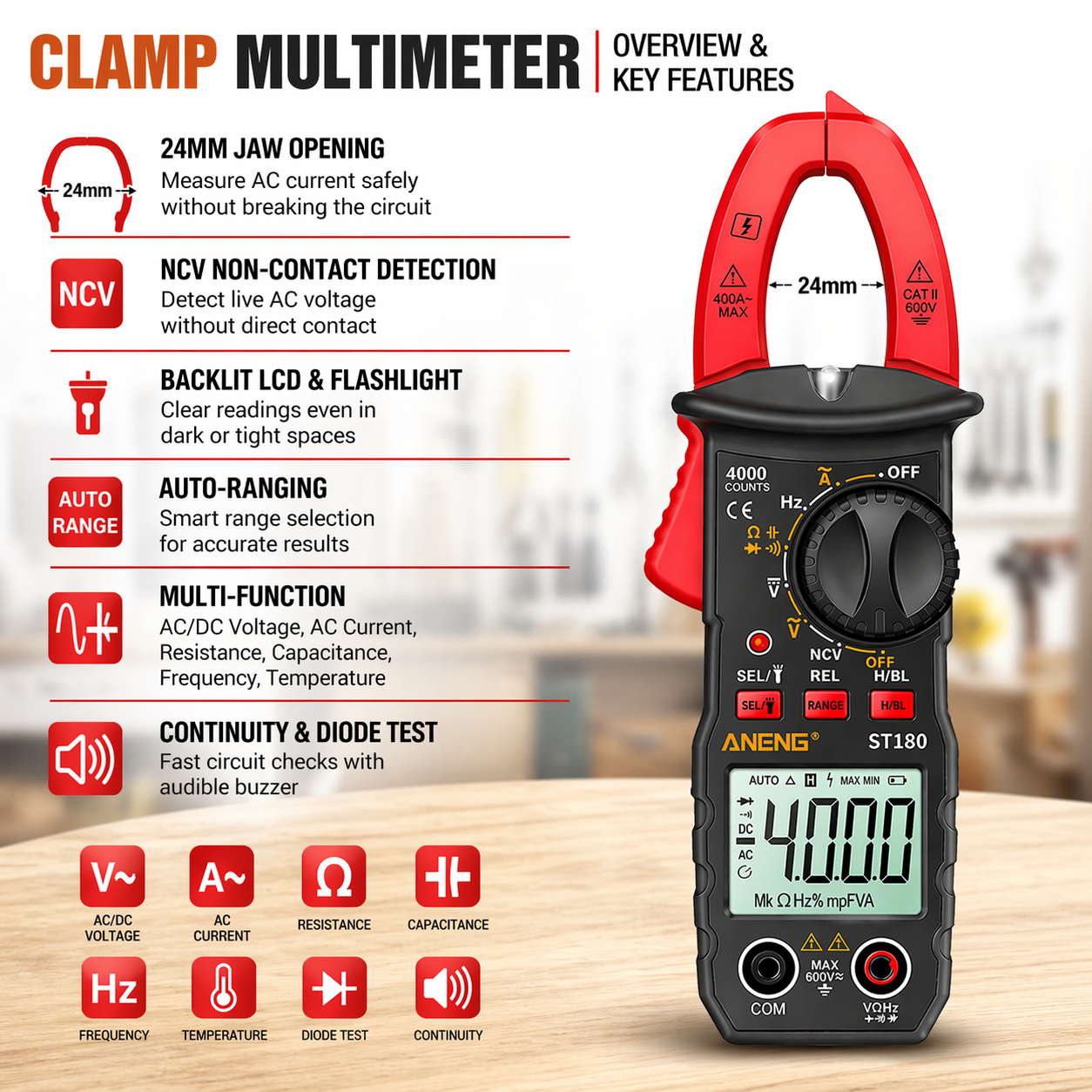

Key Features
-

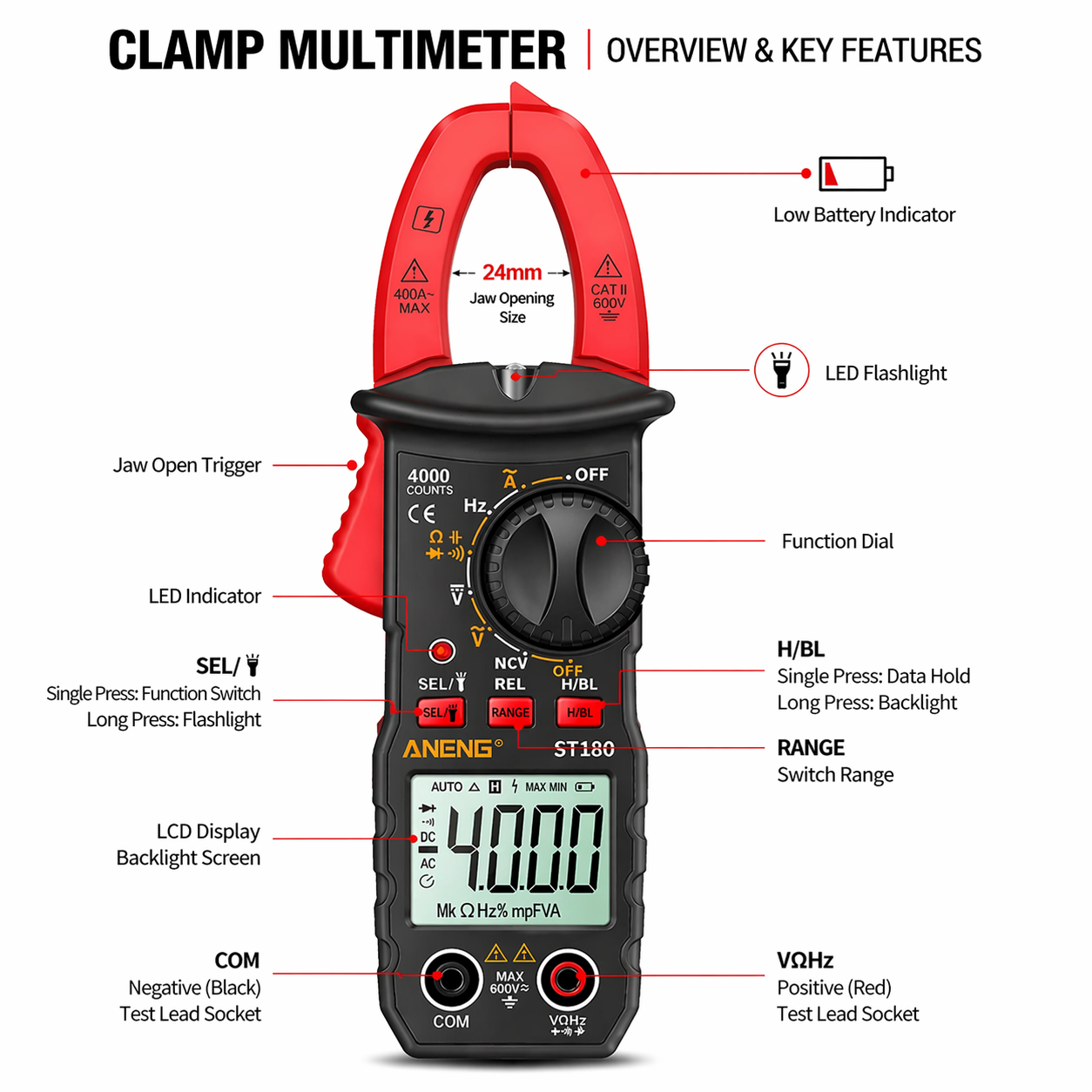

Compact & Lightweight: Pocket-size clamp meter (183mm / 133g), easy to carry anywhere.
-

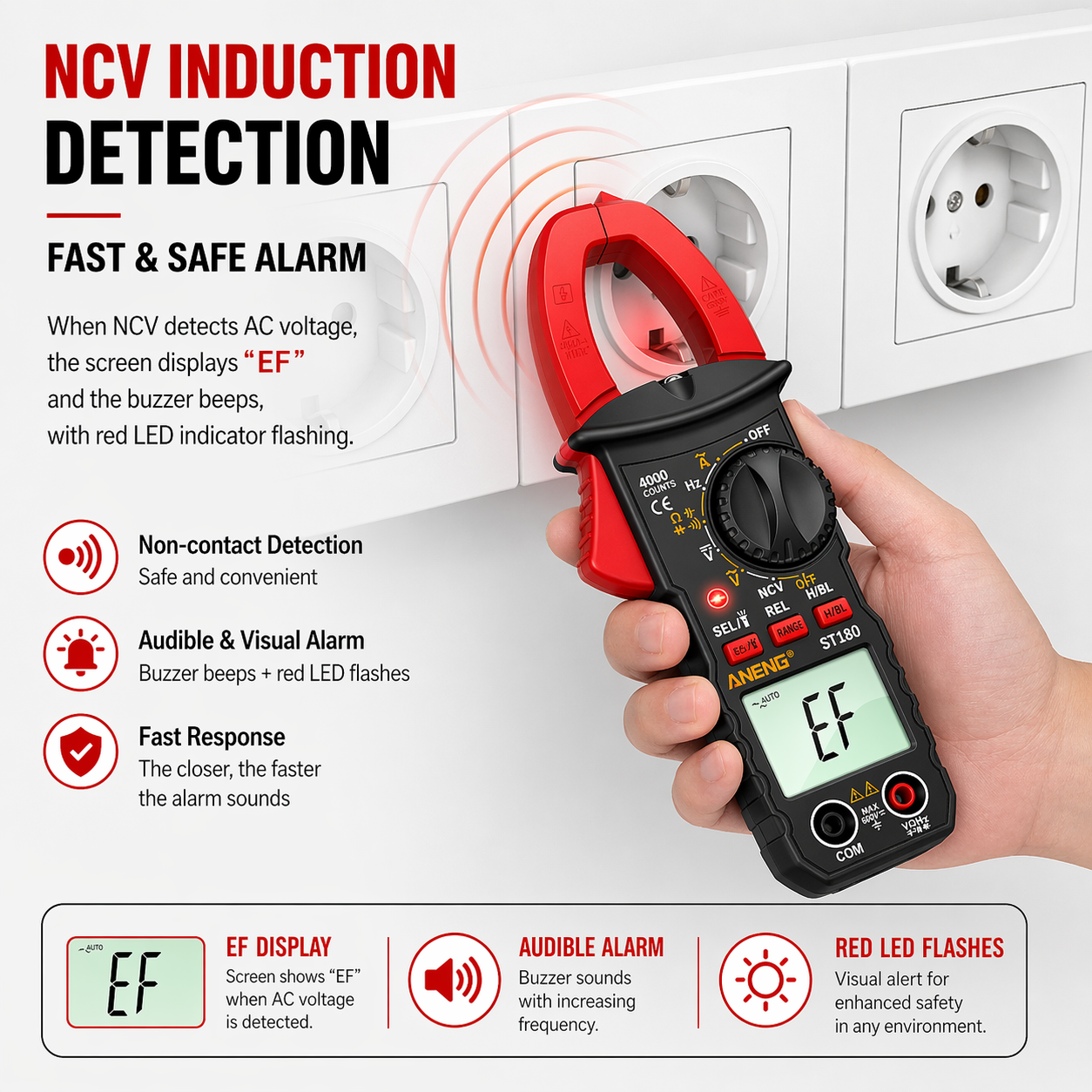

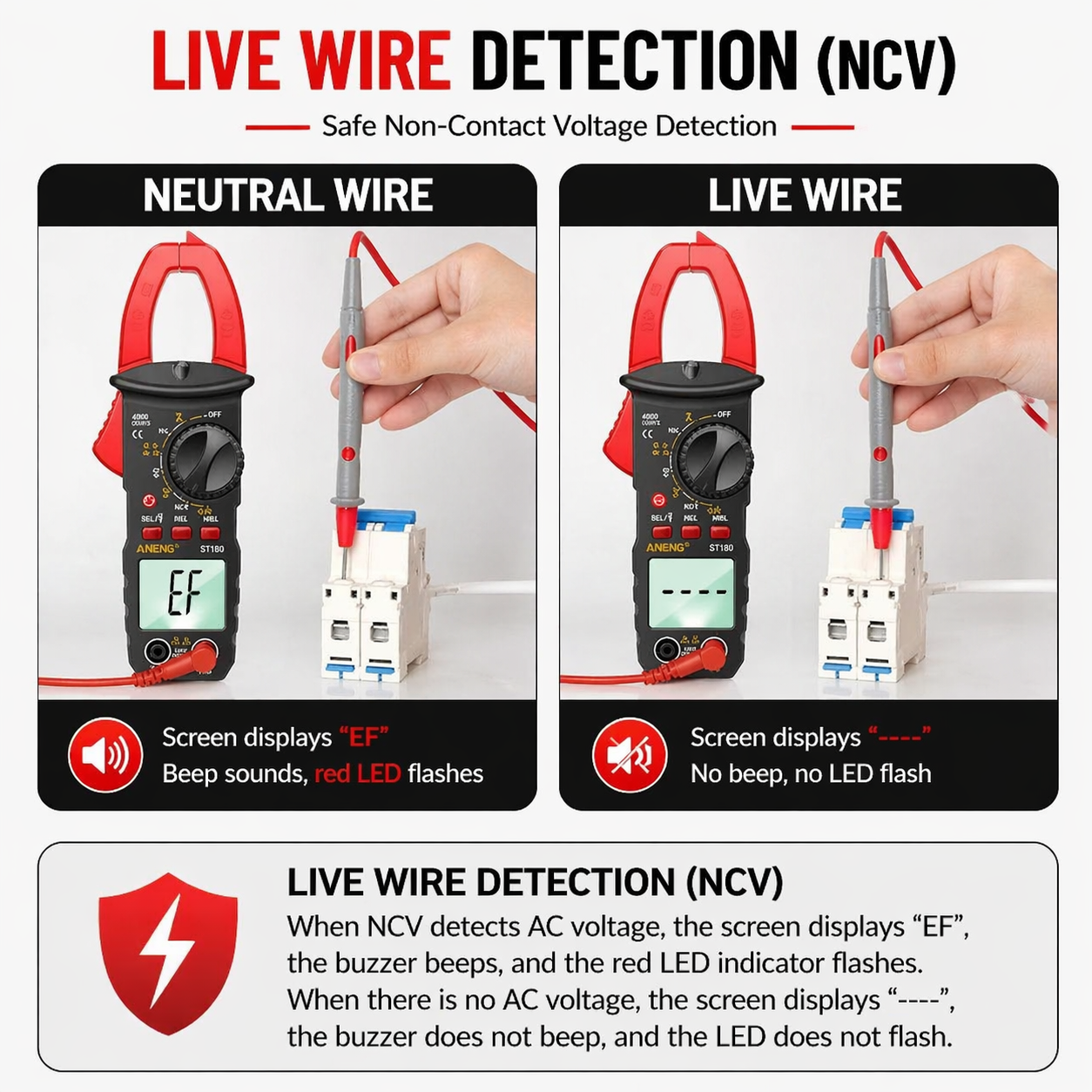

24mm Clamp & NCV: Safe current testing + non-contact voltage detection.
-

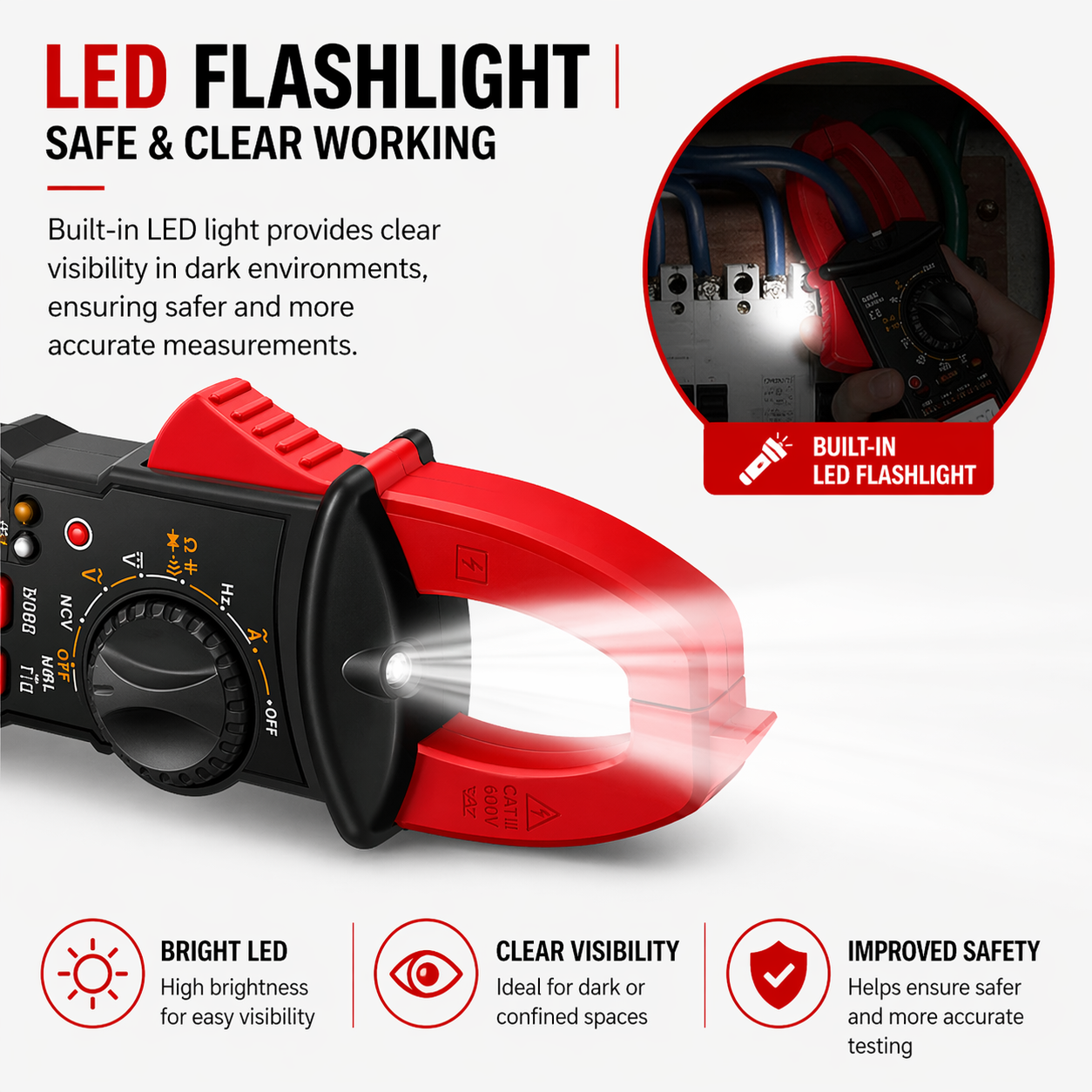

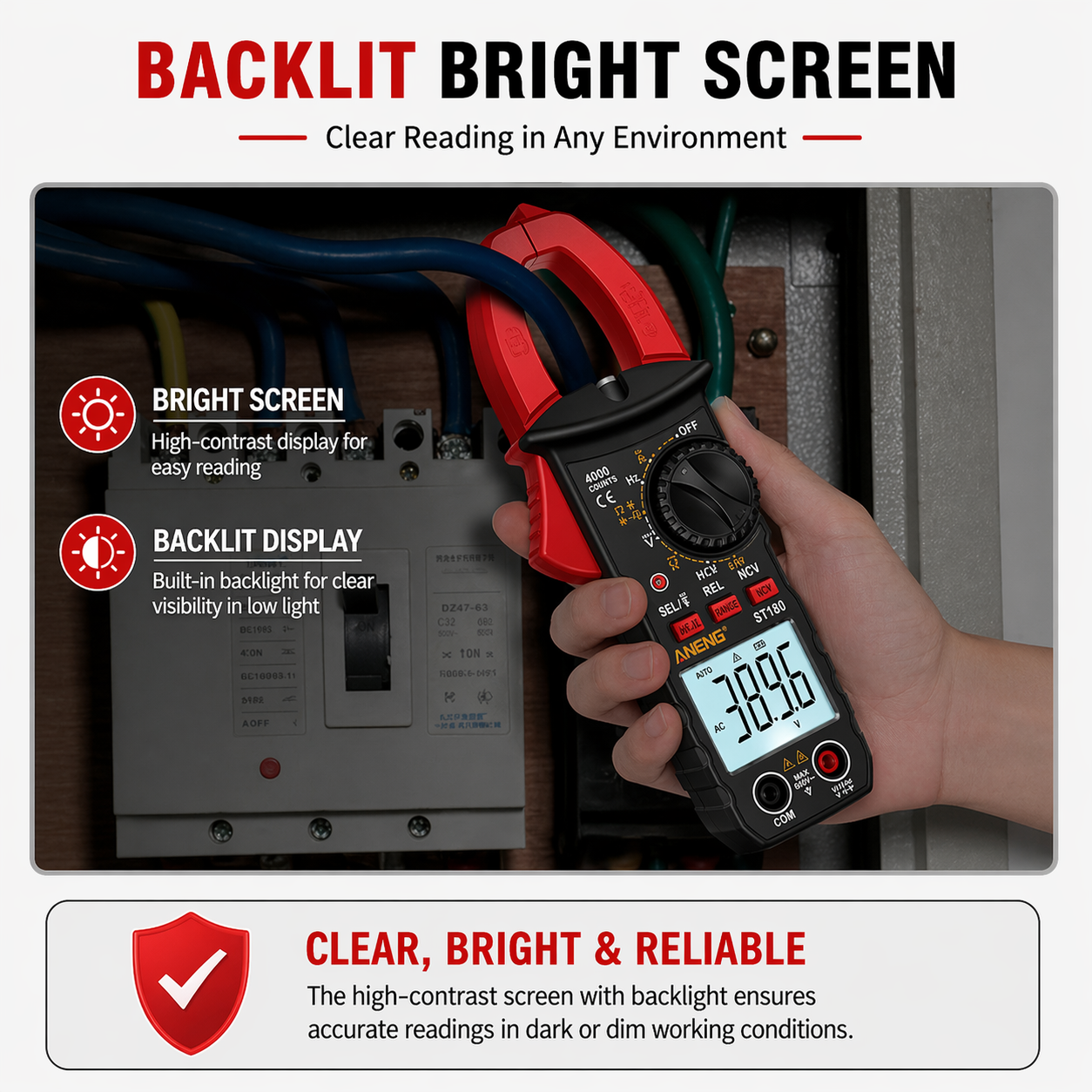

Clear Display Anywhere: 4000-count backlit LCD with built-in flashlight.
-
Smart Auto-Ranging: Fast, accurate readings with no manual setup..
Technical & Physical Specifications
-

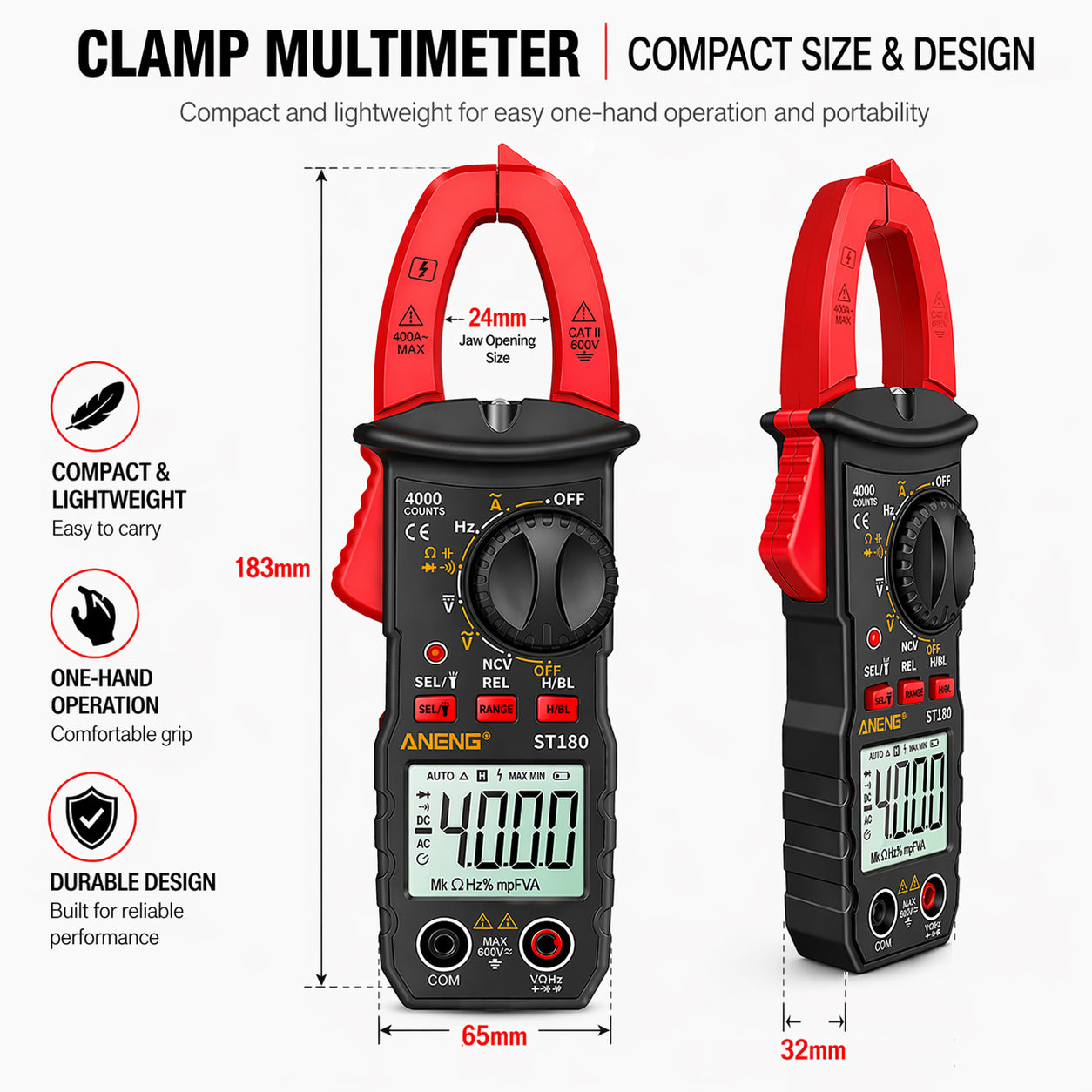

Dimensions: 183 x 65 x 32 mm
-
Jaw Opening: Approx. 24mm
-
Weight: Approx. 133g
-
Power Supply: 2 x 1.5V AAA Batteries (Not included)
-
Display: 3¾ Digit LCD，4000 Counts
-
Operating Temp: 0°C to 40 °C
-
Safety Rating: CAT II 600V
Measurement Ranges & Accuracy
| Function | Range | Accuracy |
| DC Voltage | 400mV | ±(1.5% + 5d) |
| 4V - 600V | ±(1.0% + 3d) | |
| AC Voltage | 4V - 600V | ±(1.5% + 3d) |
| AC Current | 40A - 400A | ±( 2.5% + 3d) |
| Resistance | 400Ω - 4MΩ | ±(1.2% + 3d) |
| >4MΩ | ±(1.5% + 5d) | |
| Continuity | 1nF - 4μF | ±(2.5% + 10d) |
| 4μF - 400μF | ±(4.0% + 20d) | |
| 4mF | ±(5.0% + 30d) | |
| Frequency | 10Hz - 400kHz | ±(1.0% + 5d) |
| 400kHz - 4MHz | ±(2.0% + 5d) |

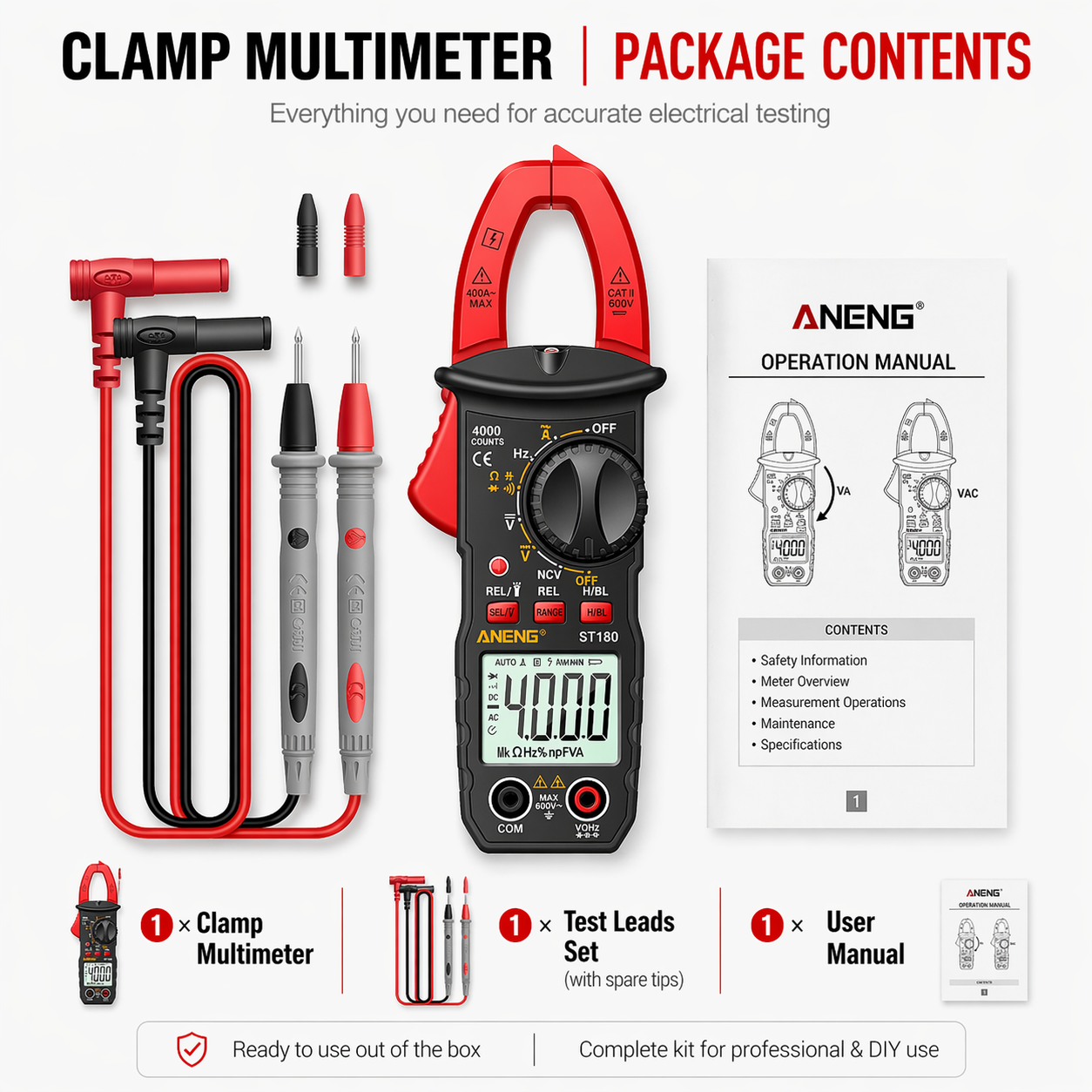

Package Includes
-
1 x Digital Clamp Meter
-
1 x Test Leads Set
-
1 x User Manual
