Smart Pen Multimeter – Compact & Powerful Testing Tool

The ANENG A3005 Smart Pen Multimeter is a versatile, portable, and easy-to-use electrical testing tool designed for professionals and DIY users. Featuring True RMS measurement, non-contact voltage detection (NCV), and multiple testing modes, this smart pen-style multimeter is perfect for quick diagnostics and everyday electrical work.

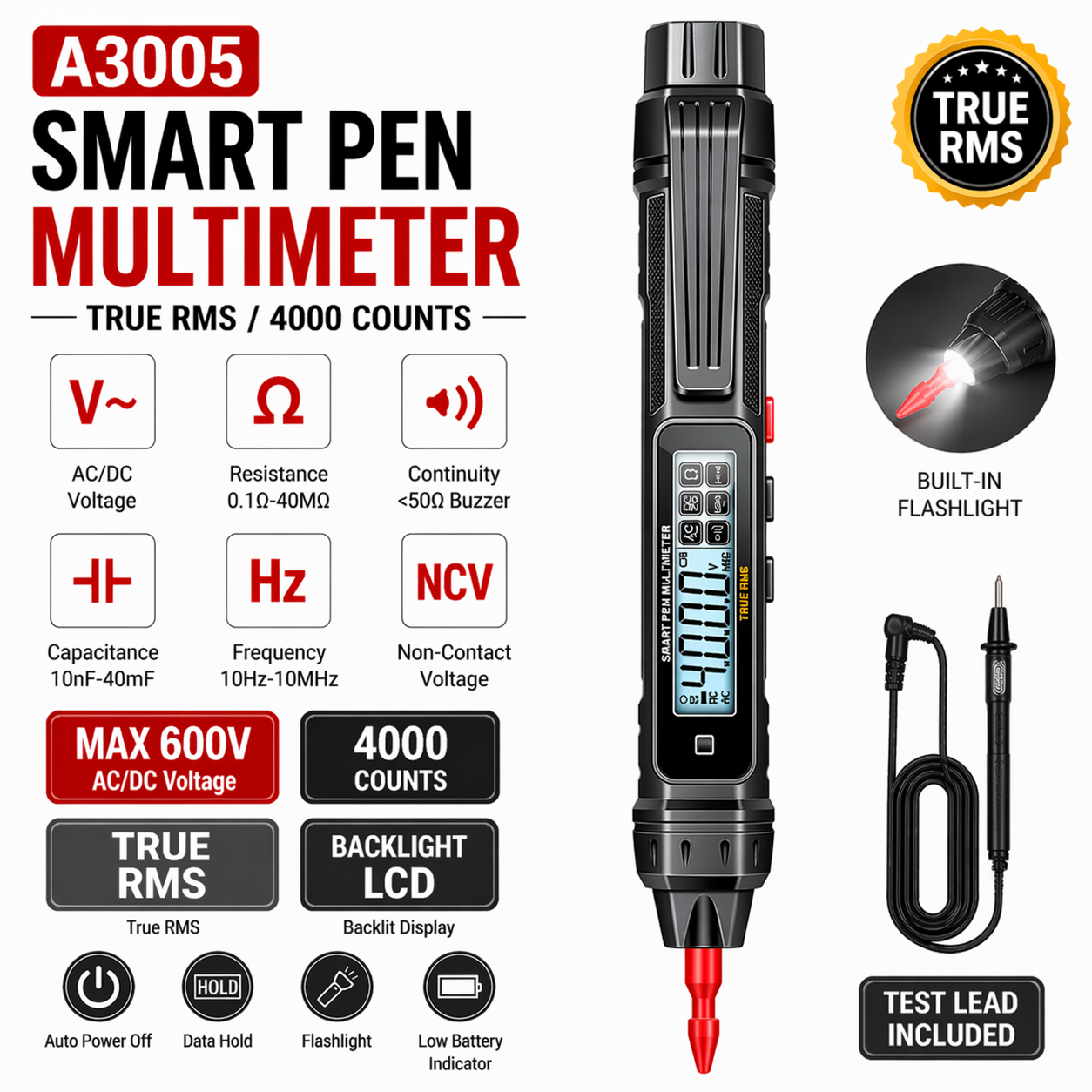

Key Features

  • True RMS Smart Measurement:

    Provides accurate AC/DC voltage readings up to 600V with auto-ranging capability.

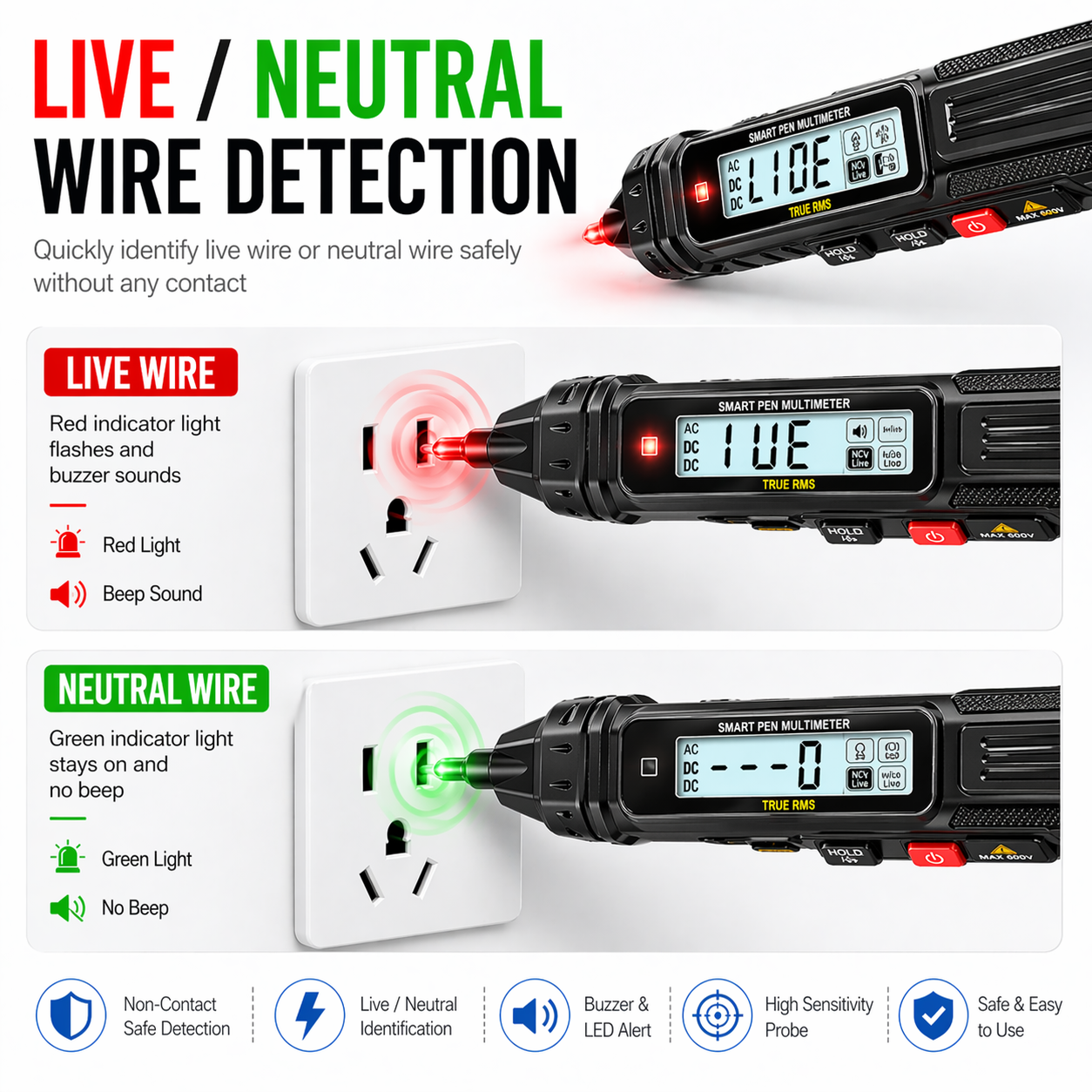

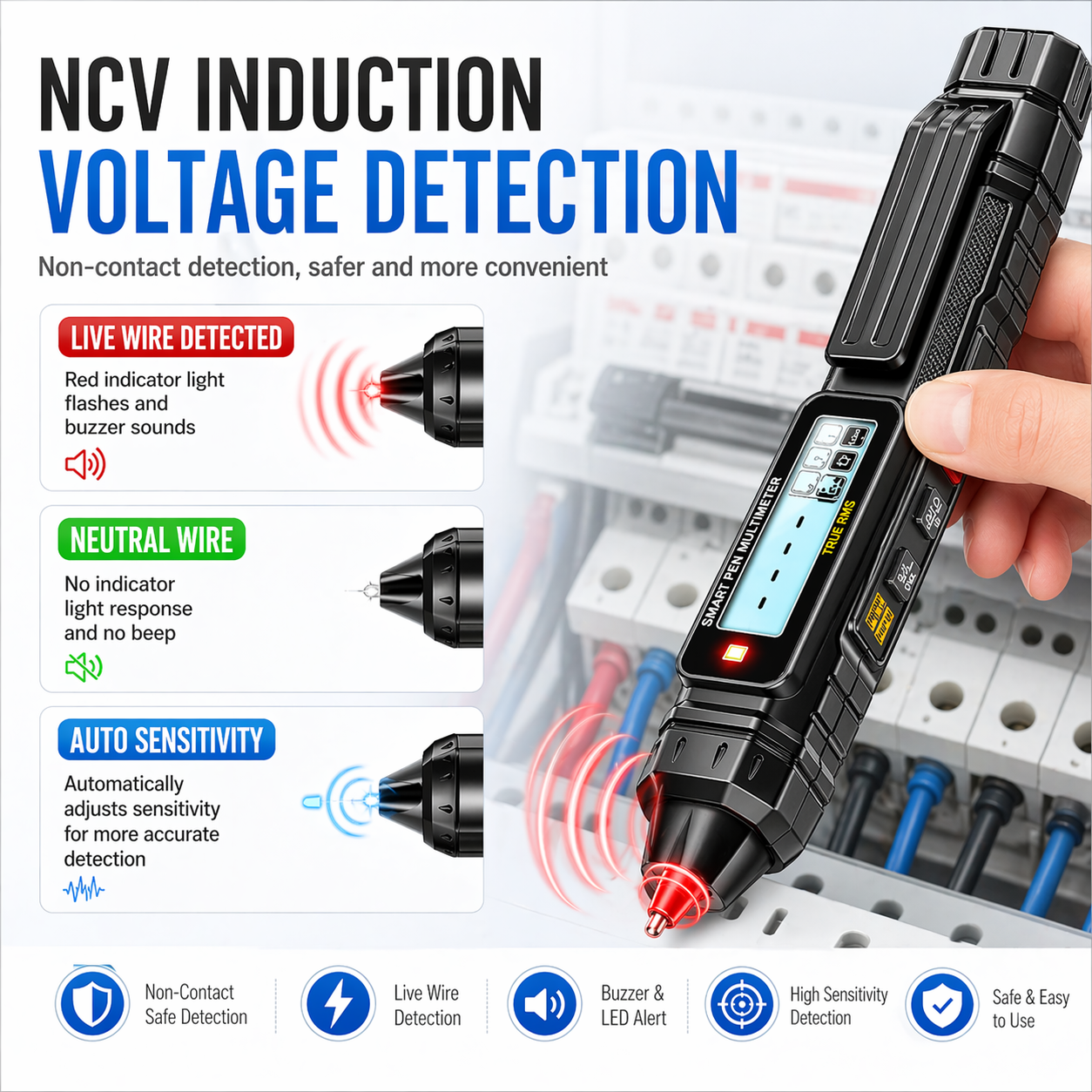

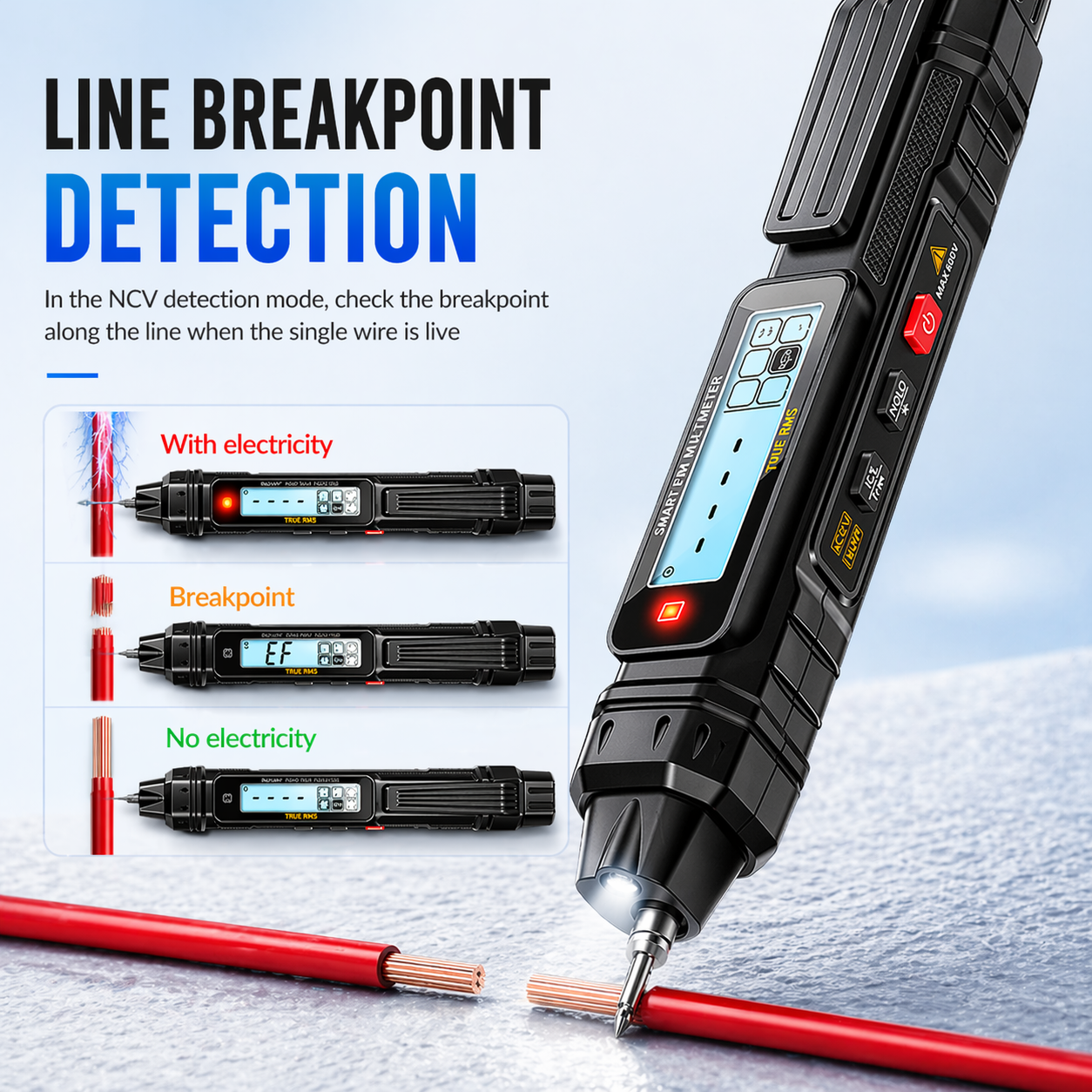

  • Non-Contact Voltage Detection (NCV):

    Safely detect live wires without direct contact, with audible and visual alerts.

  • Multi-Function Testing Tool:

    Measures voltage, resistance (up to 40MΩ), continuity, capacitance, and frequency.

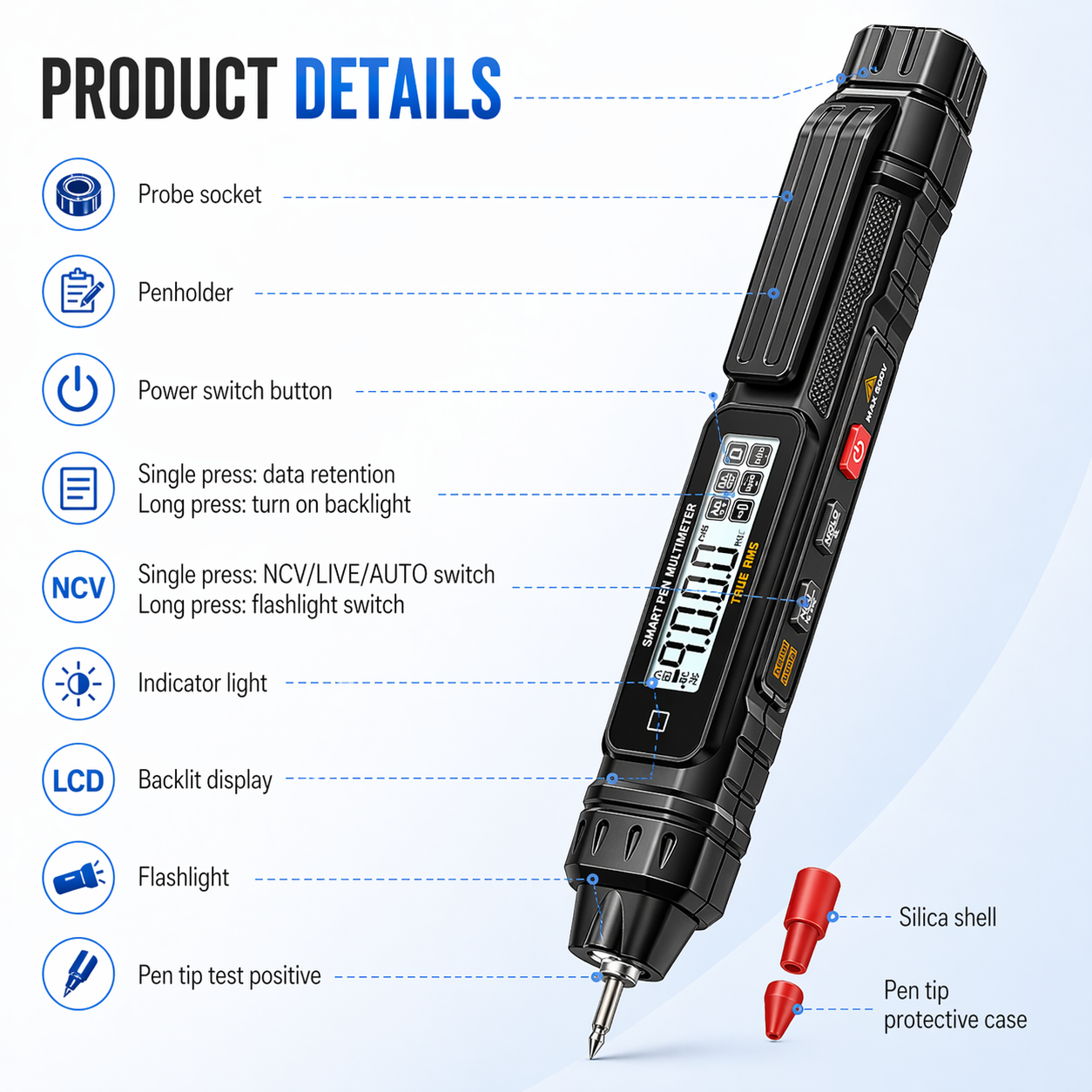

  • Compact Pen-Style Design:

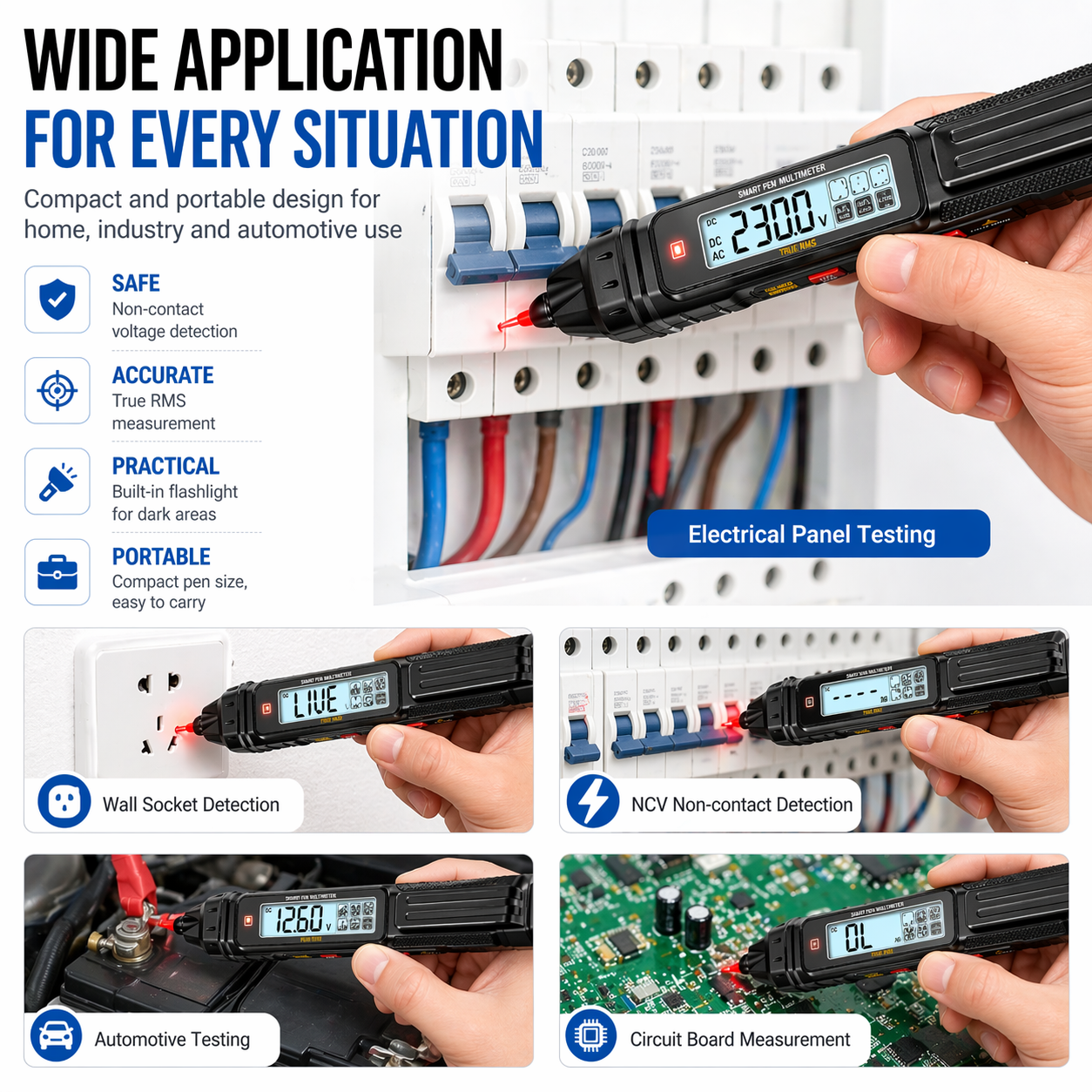

    Lightweight, portable, and easy one-hand operation—ideal for electricians and DIY use.

  • Backlit Display with Smart Features:

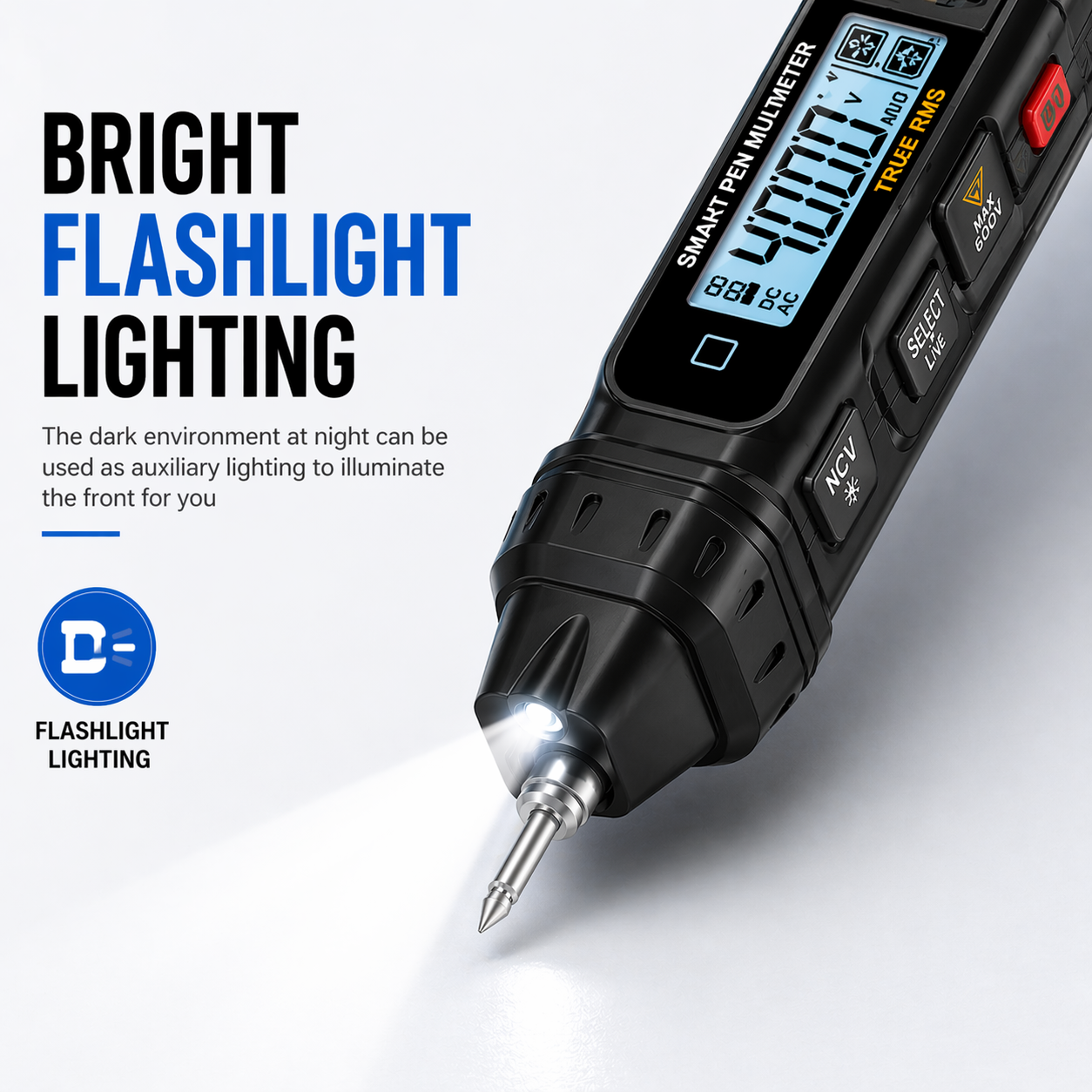

    Clear LCD with data hold, auto power-off, low battery indicator, and built-in flashlight.

Technical & Physical Specifications

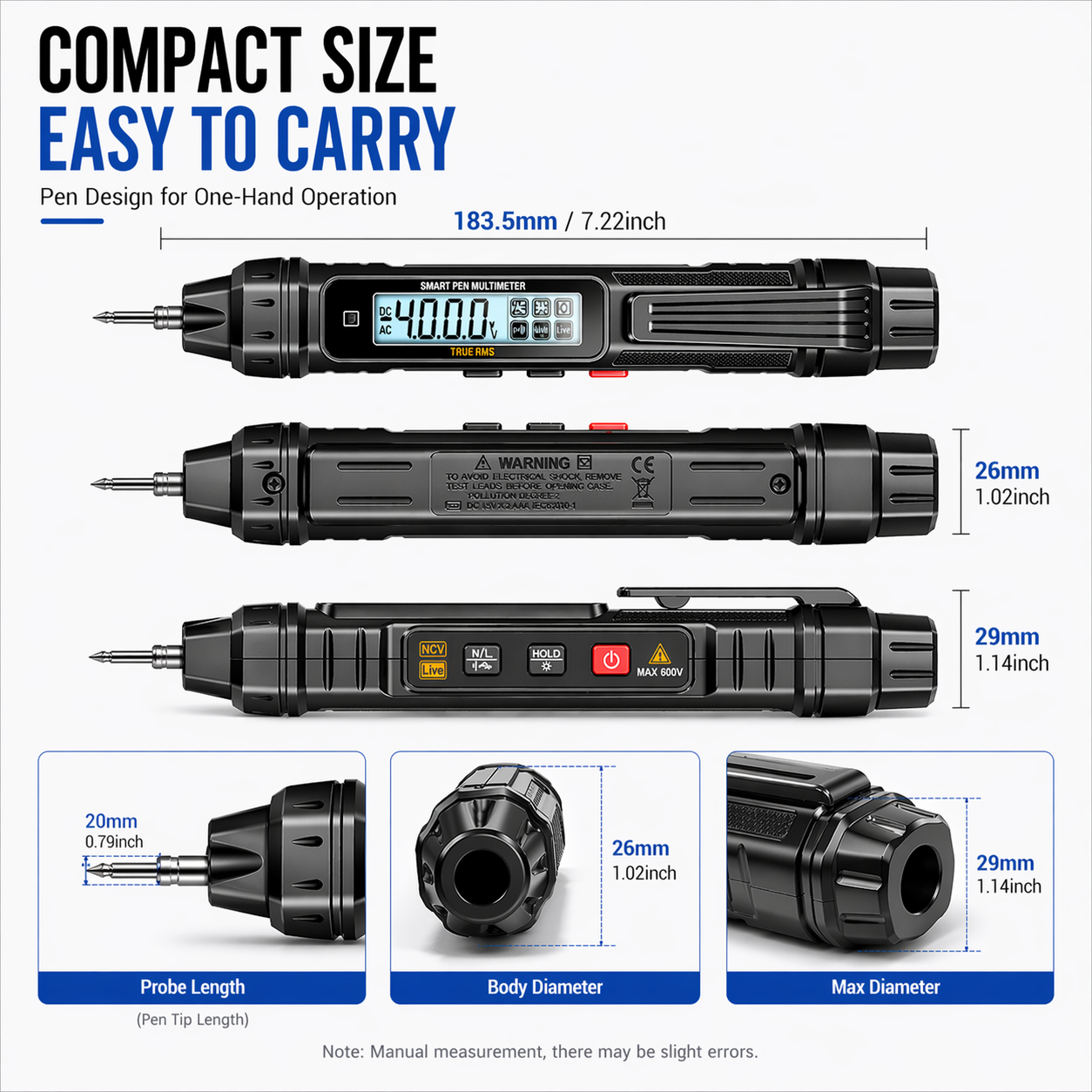

  • Dimensions: 183.5 mm (L) × 26 mm (Body Ø) × 29 mm (Max Ø)，Probe Length: 20 mm

  • Weight: Lightweight

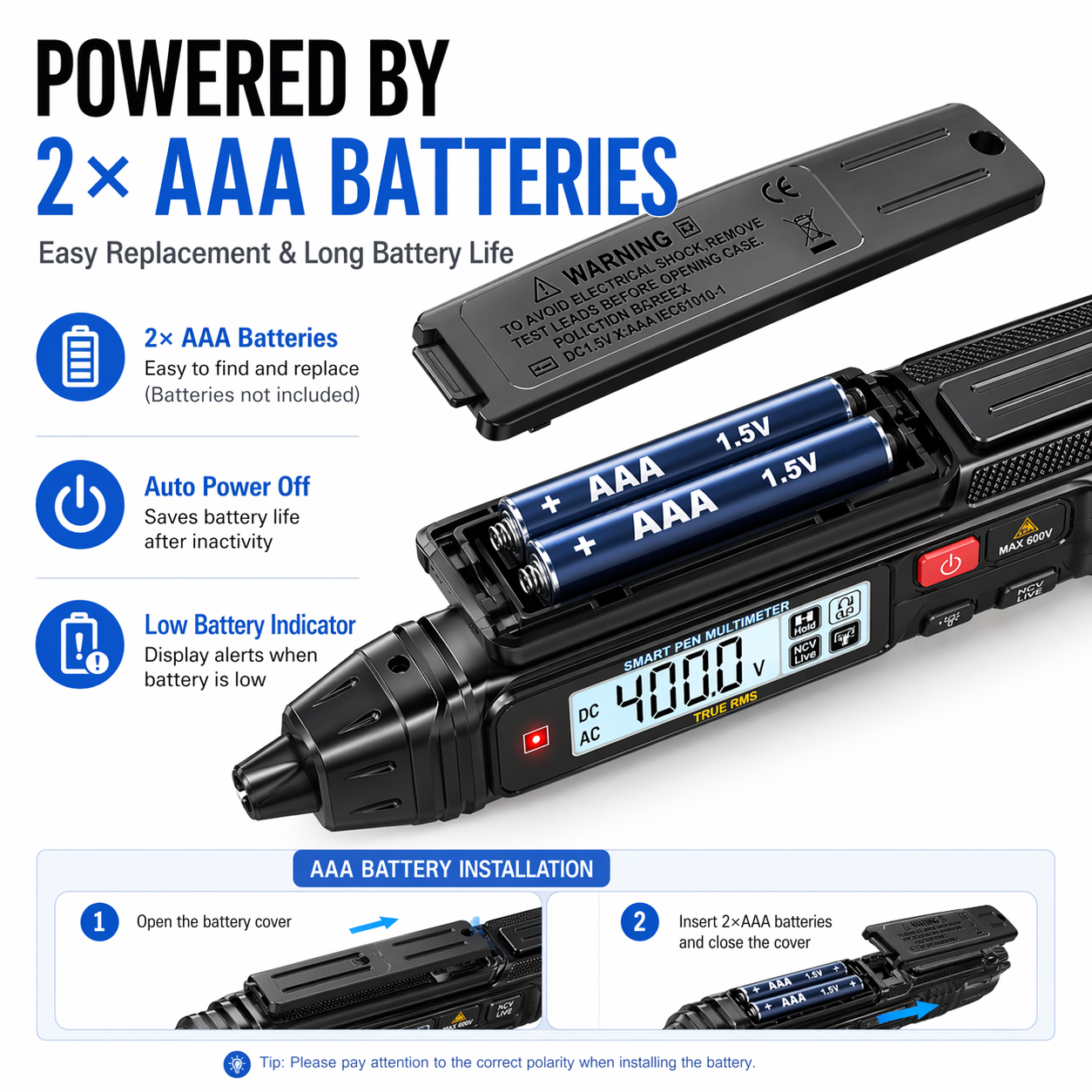

  • Power Supply: 2 x AAA batteries (not included)

  • Display: Backlit Digital Display with Data Hold，4000 COUNT

  • Maximum Input Voltage: AC/DC 0.8V–600V

  • Resistance (Ω): 0.1 – 40MΩ

  • Continuity: <50Ω buzzer

  • Features: Auto Power Off

Measurement Ranges & Accuracy

Function Range Accuracy
DC Voltage 0.8V - 600V ±(0.8% + 5)
AC Voltage 0.8V - 600V ±(1.0% + 5)
Hz 10Hz - 10MHz ±(0.1% + 5)
Cap 10nF - 40mF ±(4.0% + 5)
Ω 400Ω - 40MΩ ±(0.8% + 5)

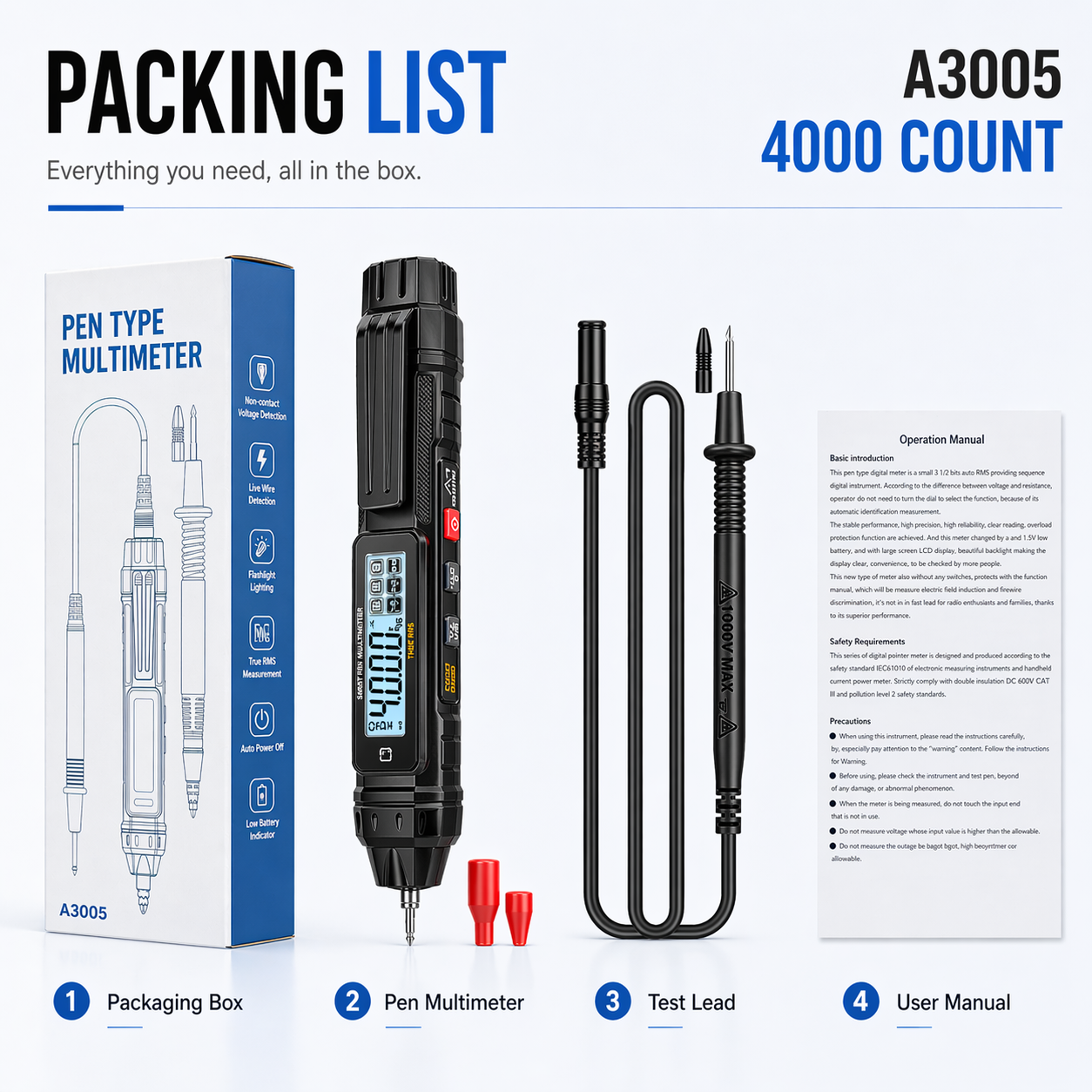

Package Includes

  • 1 x Smart Pen Multimeter

  • 1 x Test Lead

  • 1 x User Manual

  • 1 x Protective Packaging Box
